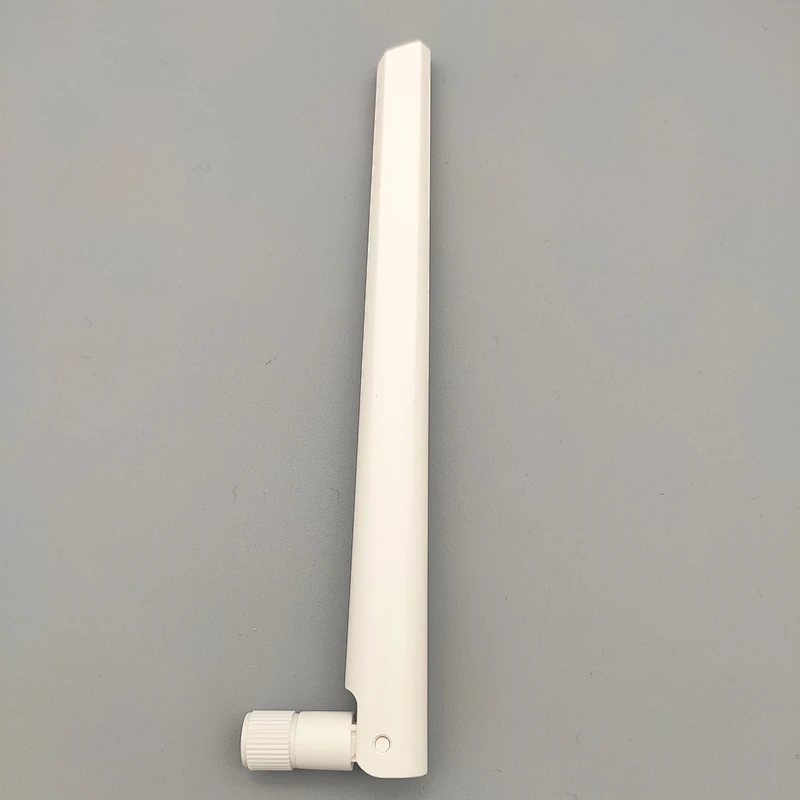

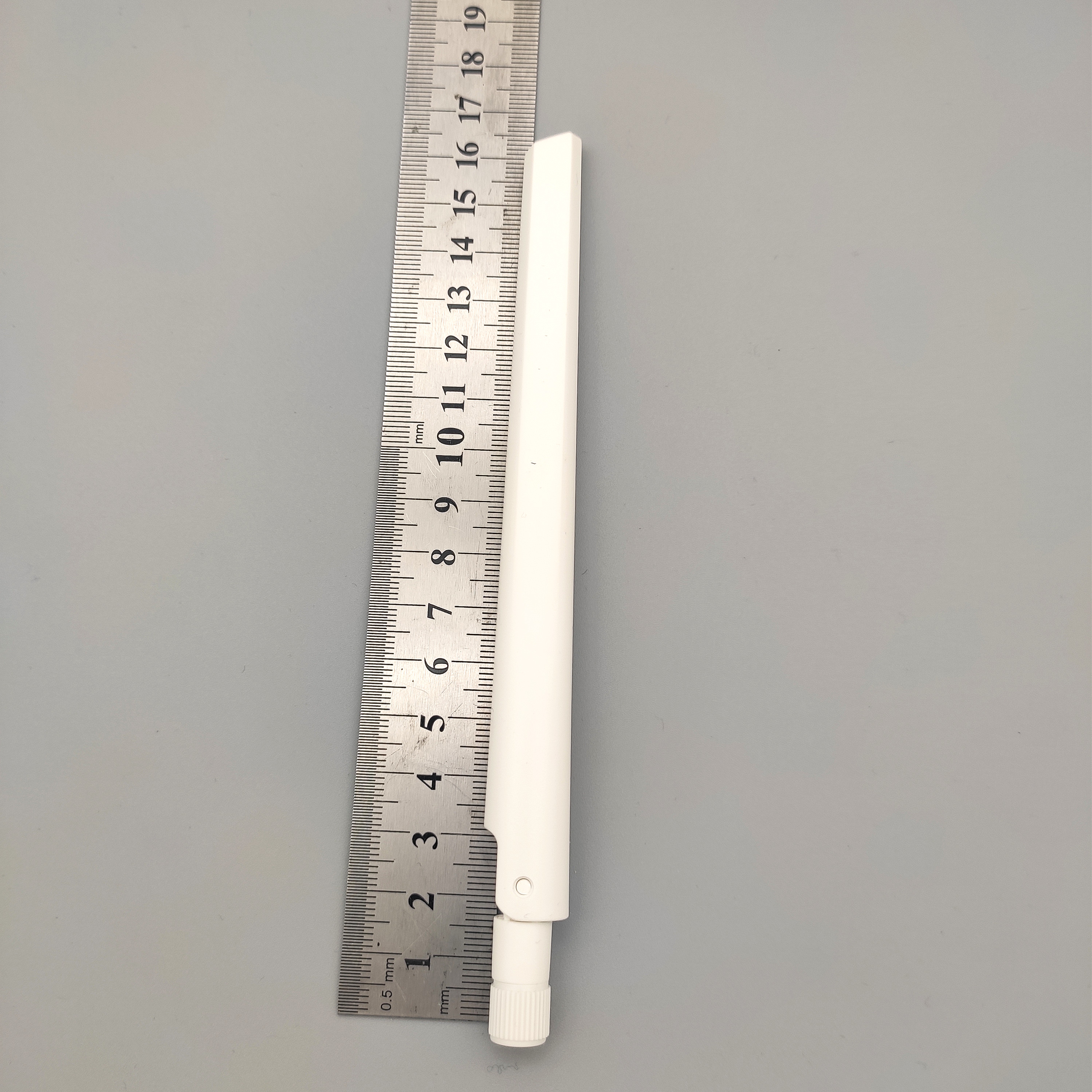

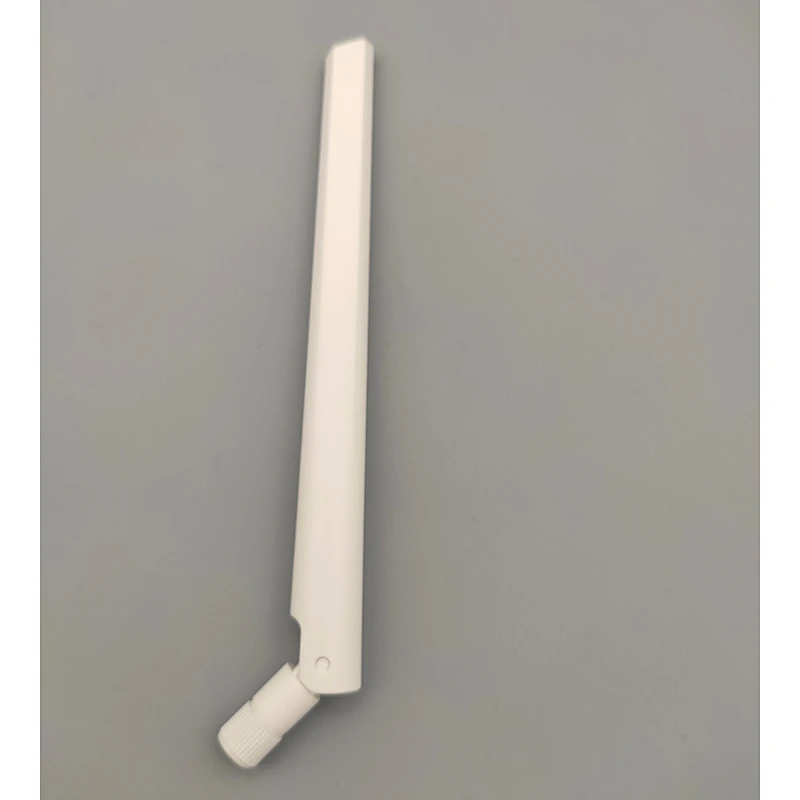

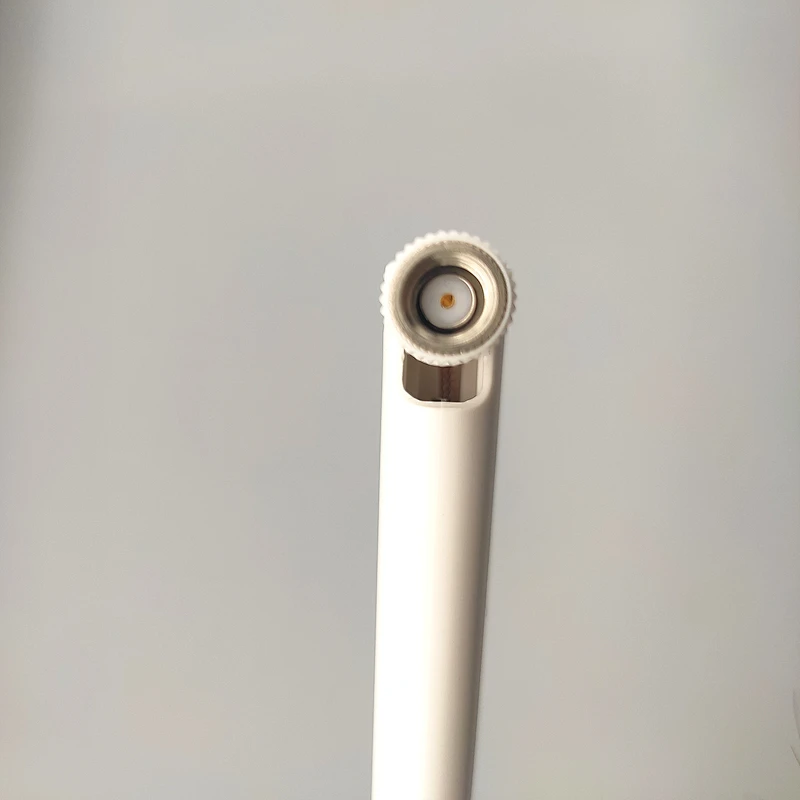

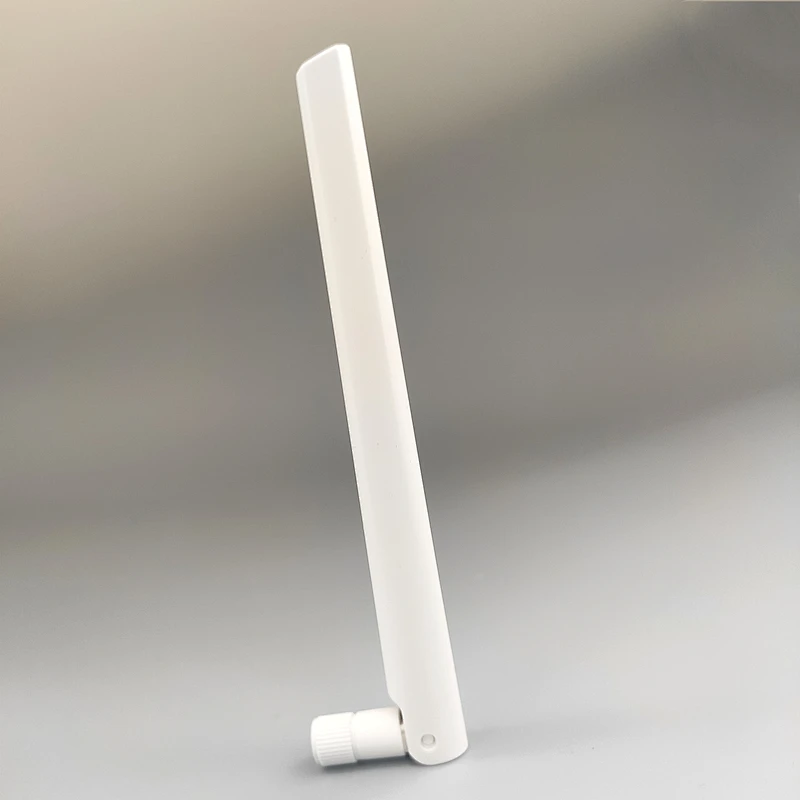

External Long Range 2.4GHz 5.8GHz WIFI Antenna
External Long Range 2.4GHz 5.8GHz WIFI Antenna
External Long Range 2.4GHz 5.8GHz WIFI Antenna
External Long Range 2.4GHz 5.8GHz WIFI Antenna
External Long Range 2.4GHz 5.8GHz WIFI Antenna
External Long Range 2.4GHz 5.8GHz WIFI Antenna
External Long Range 2.4GHz 5.8GHz WIFI Antenna
External Long Range 2.4GHz 5.8GHz WIFI Antenna
External Long Range 2.4GHz 5.8GHz WIFI Antenna
External Long Range 2.4GHz 5.8GHz WIFI Antenna
External Long Range 2.4GHz 5.8GHz WIFI Antenna
External Long Range 2.4GHz 5.8GHz WIFI Antenna
External Long Range 2.4GHz 5.8GHz WIFI Antenna

External Long Range 2.4GHz 5.8GHz WIFI Antenna

Model NO.
ZX-W02
Minimum order quantity
1
Quantity:
  • Product name:WIFI/ WLAN Antenna
  • Frequency Range:2.4&5.8GHz
  • Gain (dBi):5
  • VSWR:≤2.0
  • Polarization Type:Vertical
  • Operating temperature:-20°~+60°
  • Maxpower:10W
  • Impedance:50 Ohm
  • Radome Material:TPEE
  • Size (mm):dia10x165
  • Place of Origin:CN;SHG
  • Brand Name:ZXSignal
  • Model Number:ZX-57
Product Description

5dBi WIFI 2.4&5.8GHz dualband foldable antenna with SMA male connector.

1. 5dBi antenna.
2. 90° foldable antenna.
3. General appearance, white.

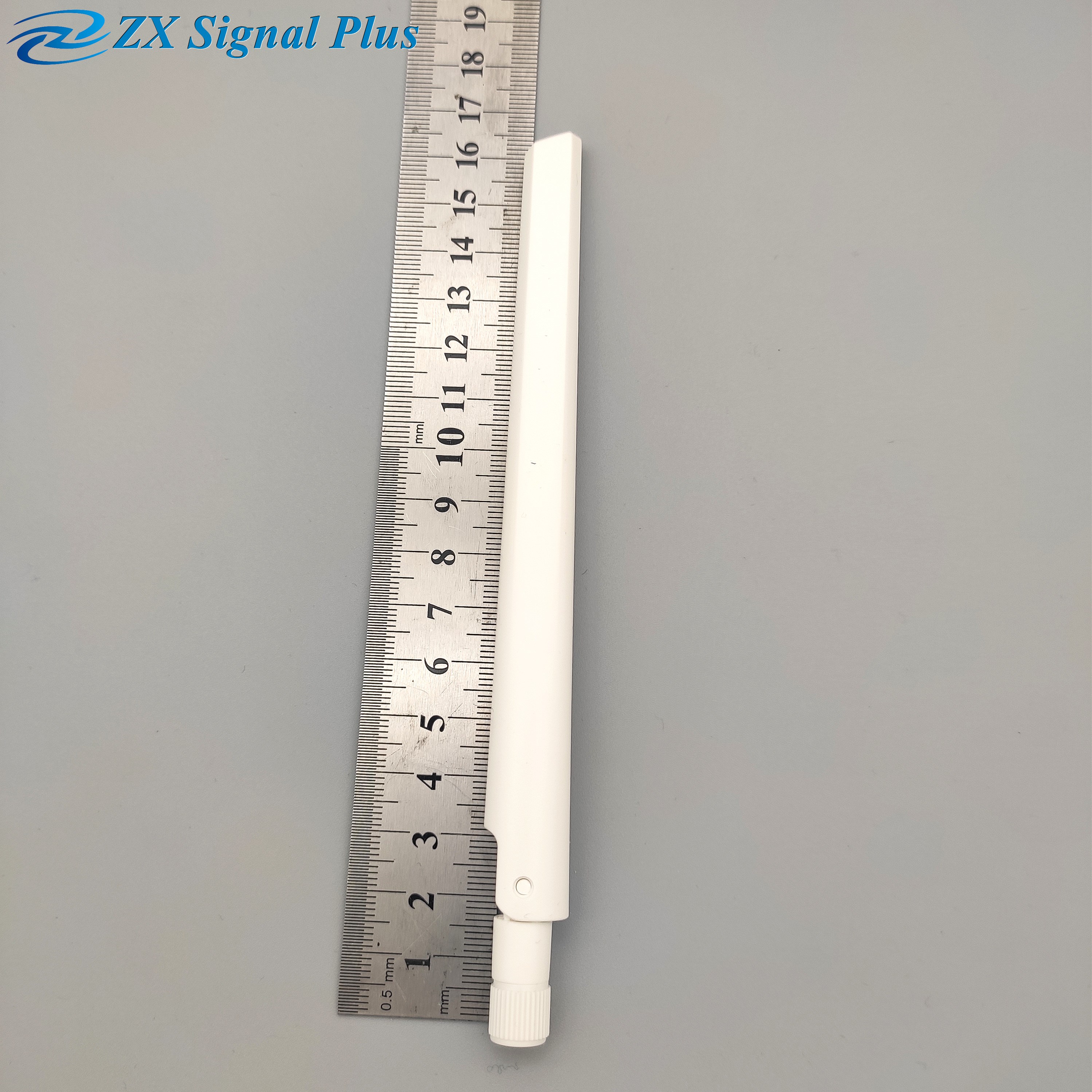

high quality externe wlan antenne
Specification
5dBi WIFI/WLAN Antenna
value
Frequency (MHz)
2.4&5.8GHz
Gain (dBi)
5
VSWR
≤2.0
Polarization
Vertical
Maxpower
10W
Size (mm)
dia 10x165

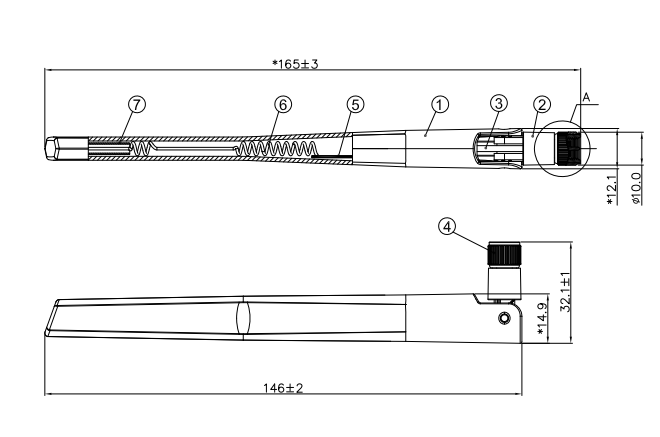

externe wlan antenne suppliers
