New Style Parabolic Antenna 2*24 dBi V8 Grid Parabolic Antenna 4G 5G Antenna 698-960/1710-2700/3300-3800MHz

New Style Parabolic Antenna 2*24 dBi V8 Grid Parabolic Antenna 4G 5G Antenna 698-960/1710-2700/3300-3800MHz

Model NO.: 20220309

Quantity:

Product Description

Product Description

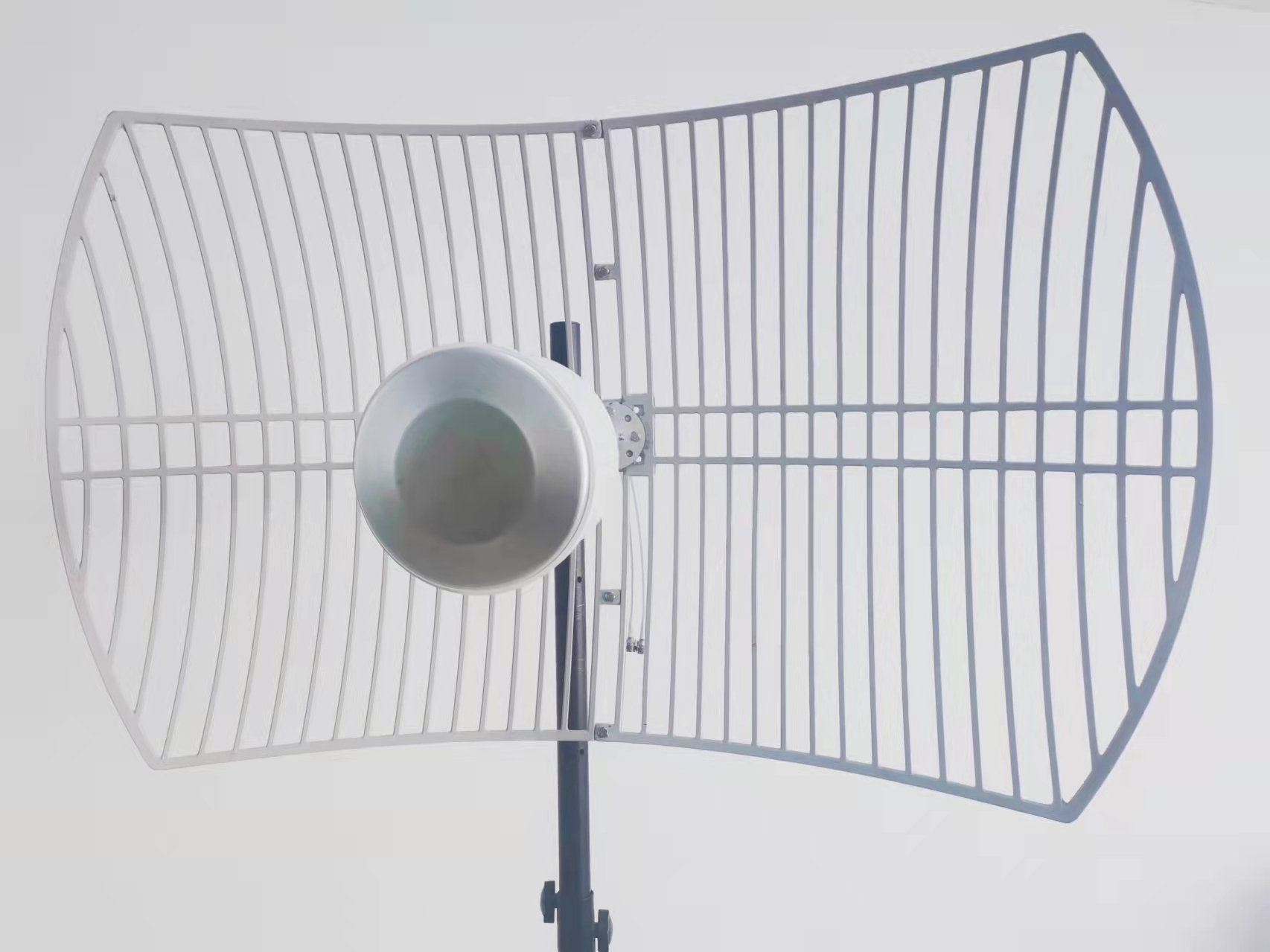

V8 Parabolic Antenna

A parabolic antenna is a surface antenna consisting of a parabolic reflector and an illuminator (feed) located at its focal point. Usually metal paraboloids of revolution, cut paraboloids of revolution or cylindrical paraboloids are used as reflectors, and horns or symmetrical oscillators with reflectors are used as feed sources.

Specification

698-960/1710-2700/3300-3800MHz V8 Parabolic Grid Antenna
Frequency (MHz)	698-960/1710-2700/3300-3800MHz
Gain (dBi)	2x24
VSWR	≤1.5
Impedance (Ω)	50
Polarization	Vertical& Horizontal
Input connector type	N female or Customized
Weight (kg)	6/-Kg

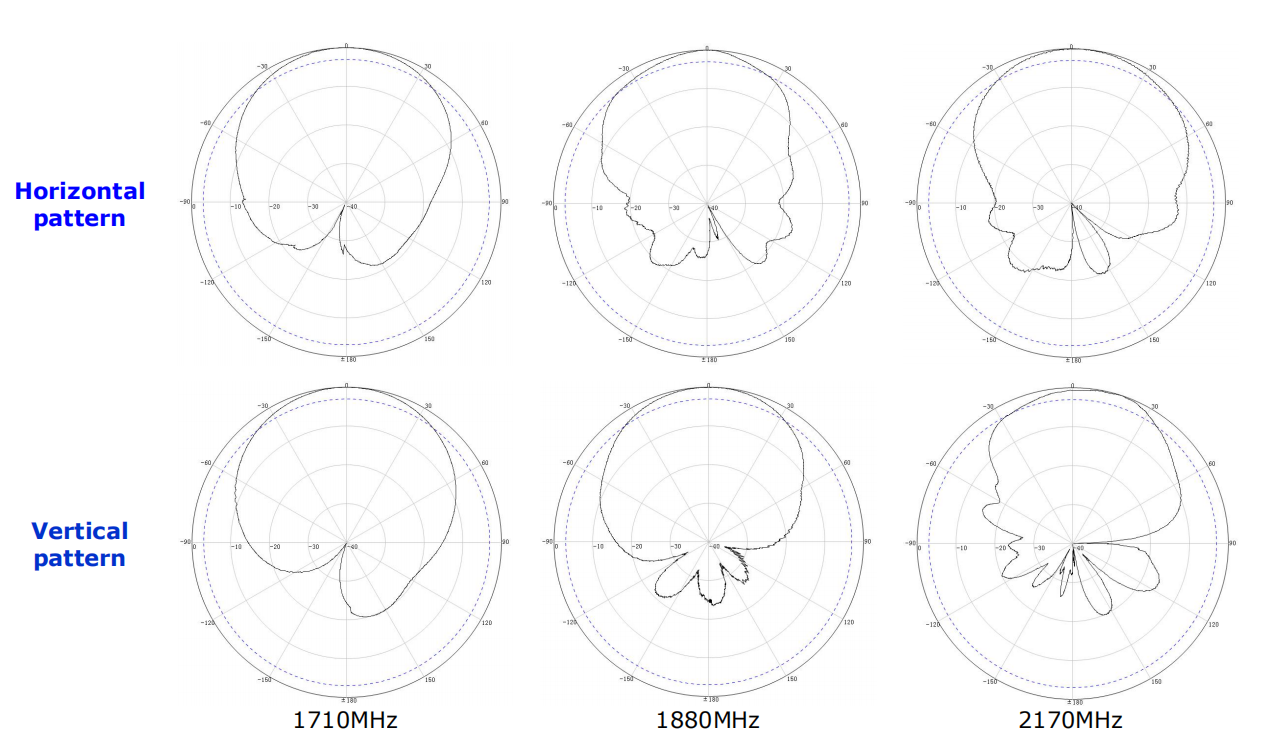

Horizontal Half-power Beam Width	30°
Vertical Half-power Beam Width	15°
Lightning protection	DC Ground
Cable Length	15m/20m
Dimensions	600900-M M (feed:167392MM)
Radome material	ABS
Radome color	Gray
Operating temperature	-40℃～65℃
Rated Wind Velocit	60m/s
Waterproof Standard	IP67

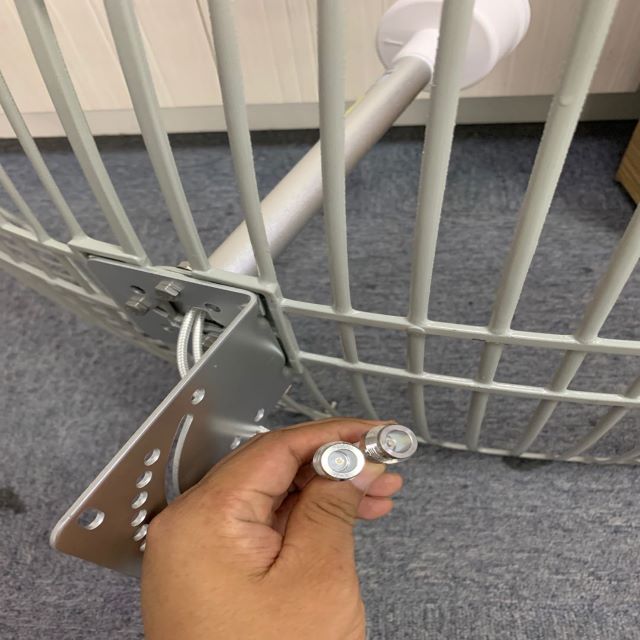

Mounting way	wall-hanging or pole-holding
Mounting hardware	￠35mm～￠50mm

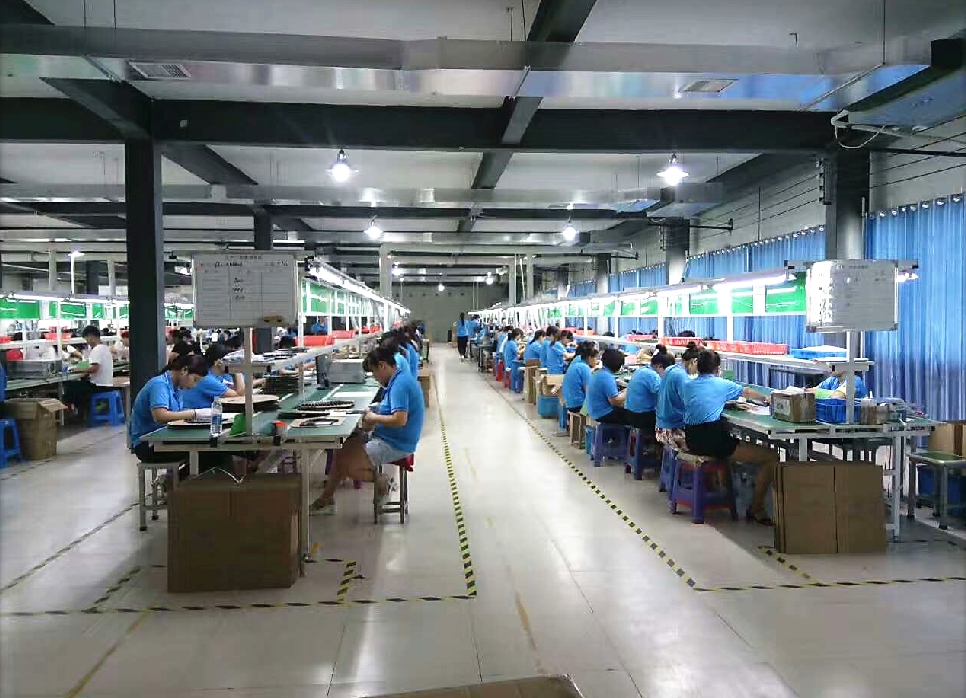

Production Flow

Certifications

Payment& Shipping

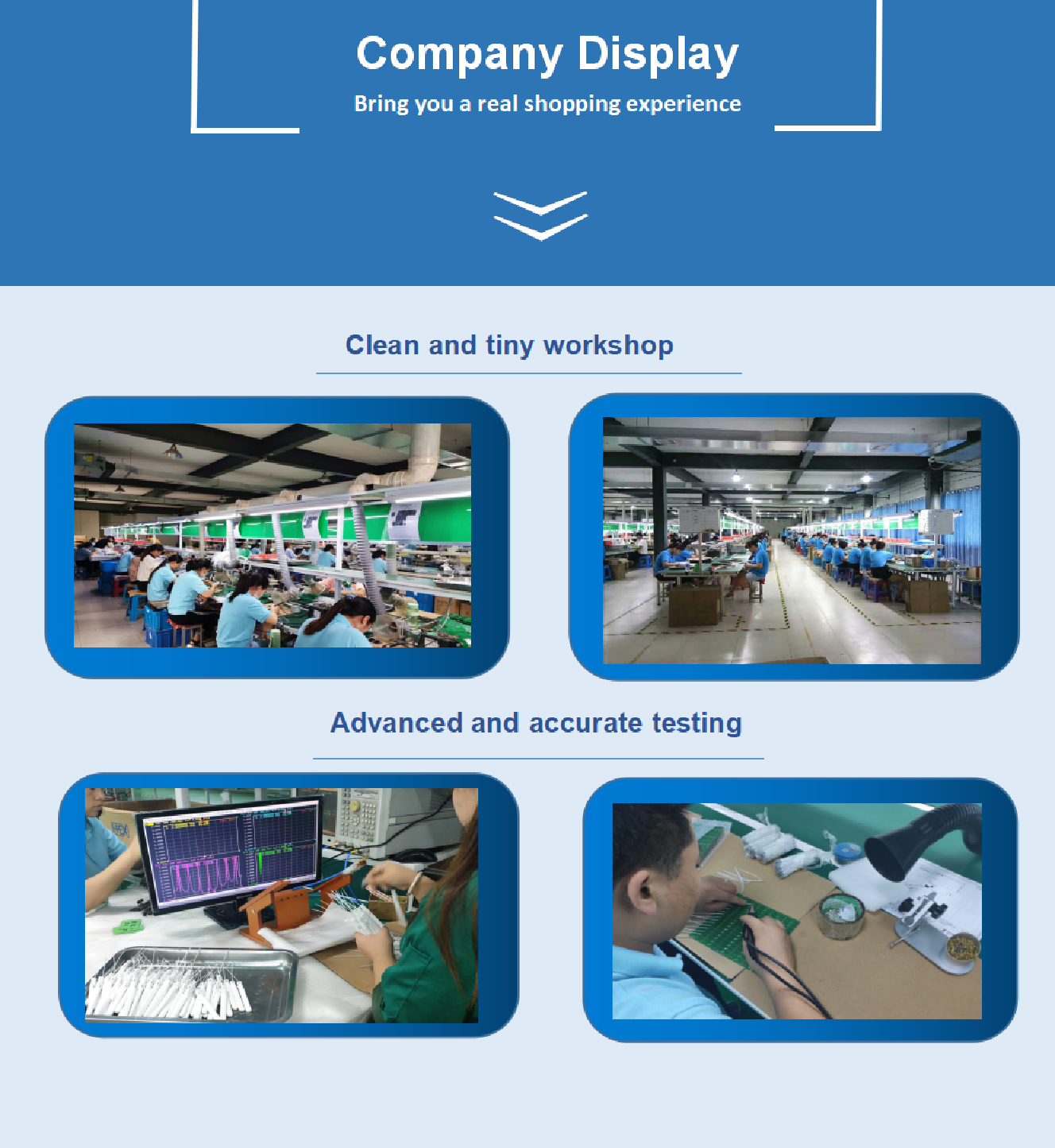

Company Profile

00:00

00:32

Signal Plus Technology Co., Ltd. is a high-tech enterprise which is established in January, 2015 in Shanghai ,China. Equipped with precise antenna testing chamber and related equipment, we are specializing in all kinds of antennas which applied to AP/router, fixed wireless phone, LTE CPE, GPS passive/active antenna, DVB, Bluetooth and other internal and external antenna. Our hit products are WIFI/BLUETOOTH antenna, 2G/ 3G/ 4G/ 5G antenna, GPS/ GLONASS/ COMPASS/ GALILEO antenna, combo antenna and all kinds of connector. We have our own factories, located in Henan and Jiangsu province, which have above 20 production line and more than 1000 workers to guarantee your goods to produce smoothly. As we have made huge investment in the R&D of antennas, Signal Plus possess of exclusive, well experienced R&D and sales team More than 30 engineers help customer to get their ideal products including 10RF engineers and 4 MD engineers. Up to now, Signal Plus holds 25 patents and many representative honors, such as Shanghai Outstanding High-tech enterprise. We launch our ALIBABA platform in 2019 , but our annual domestic turnover have registered about CNY 10 million.So please do not worry about our qualifications and welcome your visit!
