- Frequency Range:900/1800/2600MHz
- Bandwith:900-2100 MHz
- Gain:65 dBi
- Coverage:500-800 sqm
- Output Power:20dBm
- Size:210mm*280mm*185mm
- Power supply:12V 24V 26V DC, 90-256V AC
- Charger support:UK/US/EU/SA/China
- Place of Origin:Shanghai,China
- Brand Name:zxsignal
- Model Number:Booster
Product Description

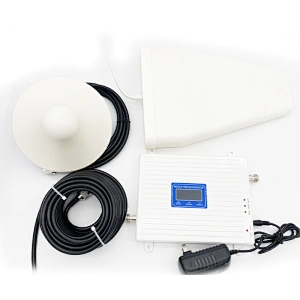

Tri-Band 900/1800/2100 2G 3G 4G LTE Mobile Phone Signal Booster
Tri-Band 900/1800/2600 2G 3G 4G LTE Mobile Phone Signal Booster
Tri-Band 700/900/1800 2G 3G 4G LTE Mobile Phone Signal Booster
Specifications
| Frequency | UPLINK | DOWNLINK |
| GSM 900Mhz | 890-915MHz | 935-960Mhz |
| 4G 1800Mhz | 1710-1785MHz | 1805-1880Mhz |
| 3G 2100Mhz | 1920-1980MHz | 2110-2170Mhz |
| Max. Gain | 60-65DBI | |
| In-band Ripple(db) | GSM CDMA≤±3 | |
| Max Input Power(dBm) | ≤20 | |
| Max output Power(dBm) | ≤23 | |
| VSWR(dB) | ≤2.5 | |
| Time delay | ≤1.0us | |
| Spurious | 9KHZ-150KHZ≤-36dBm at1Khz 150Khz-30Mhz≤-36dBm at10Khz 30Mhz-1GMhz≤ -36dBm at 100Khz 1~12.75GHz≤ -36dBm at 100Khz at 1Mhz | |
| Working Temperature | -25-55°C | |
| Power supply | 110-240V AC; 5-12V DC | |
| Weight | 1.2KG | |
