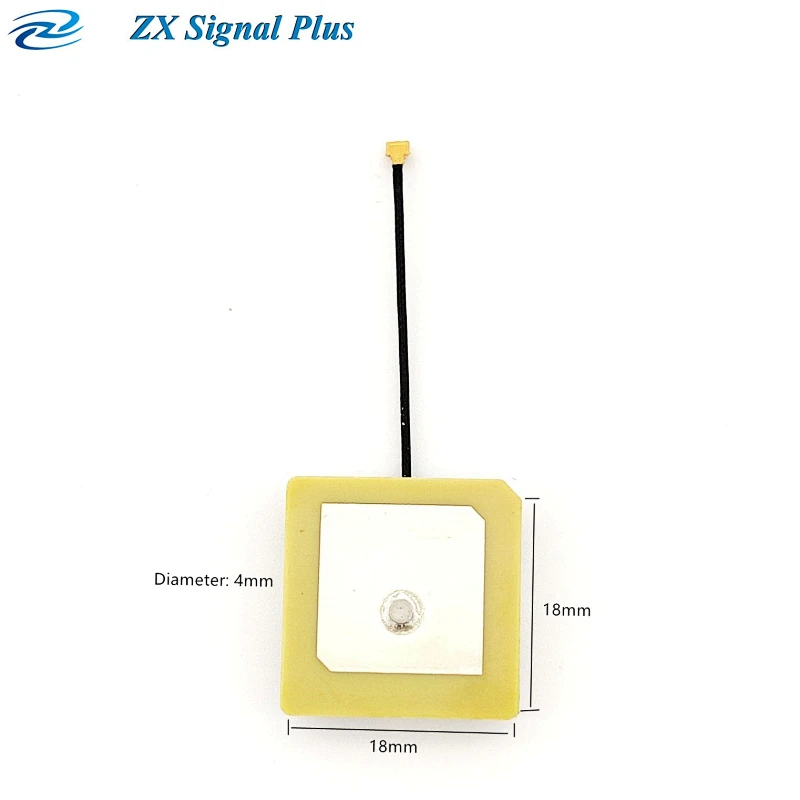

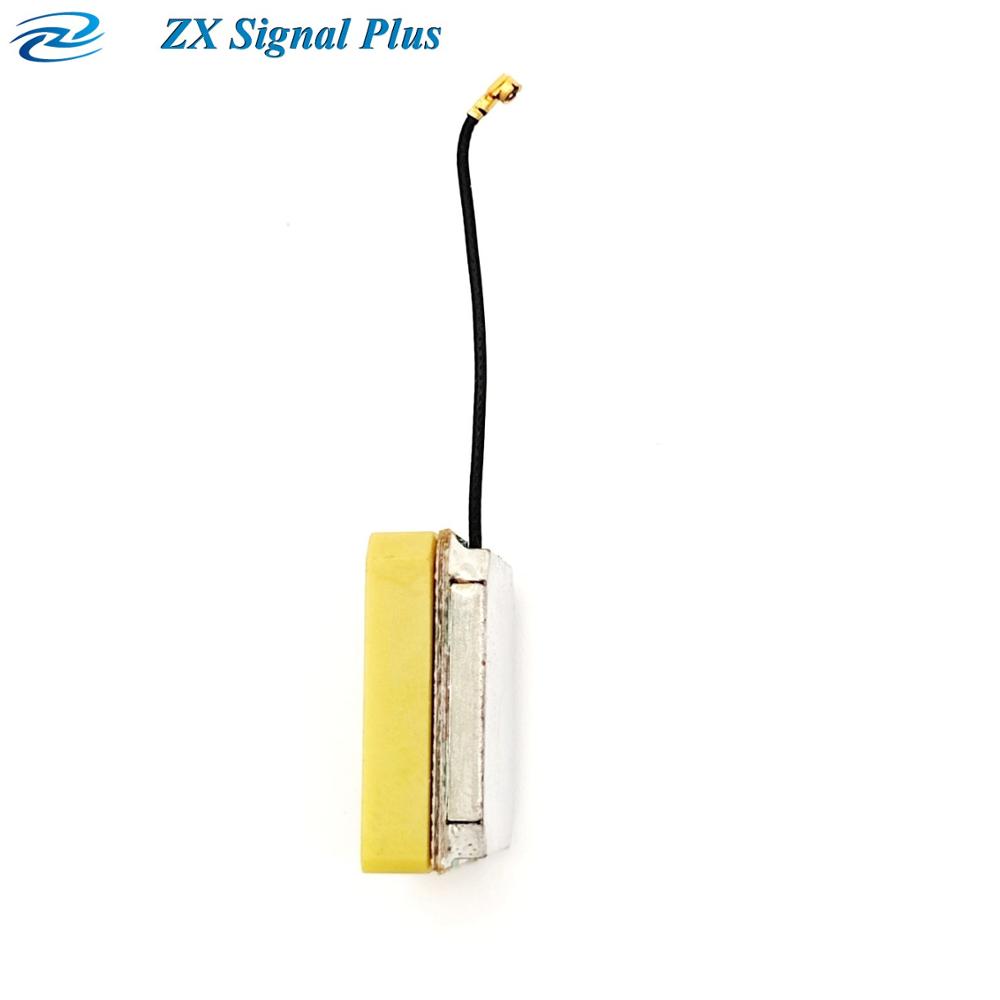

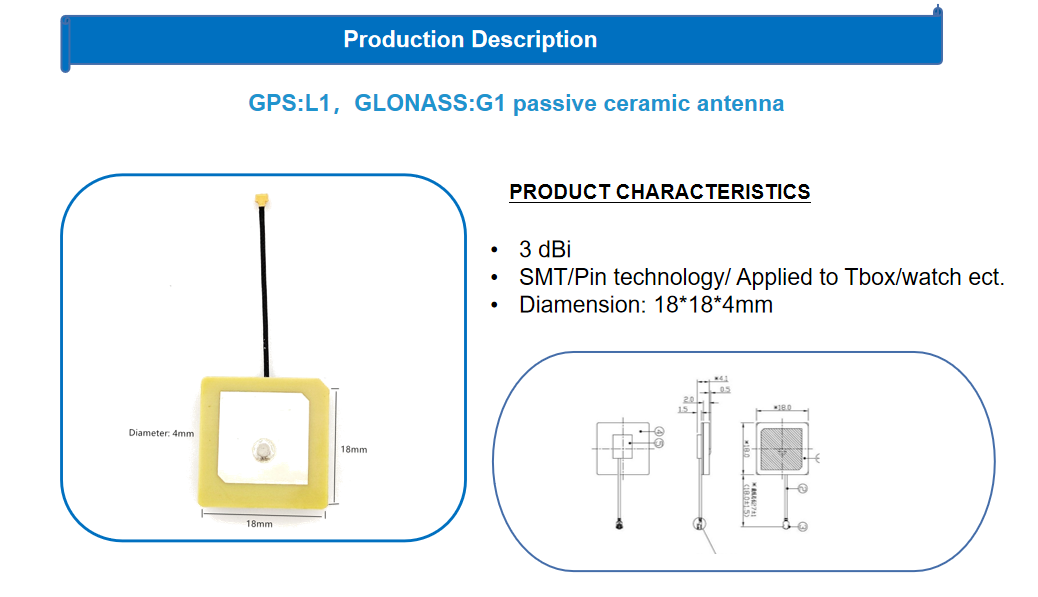

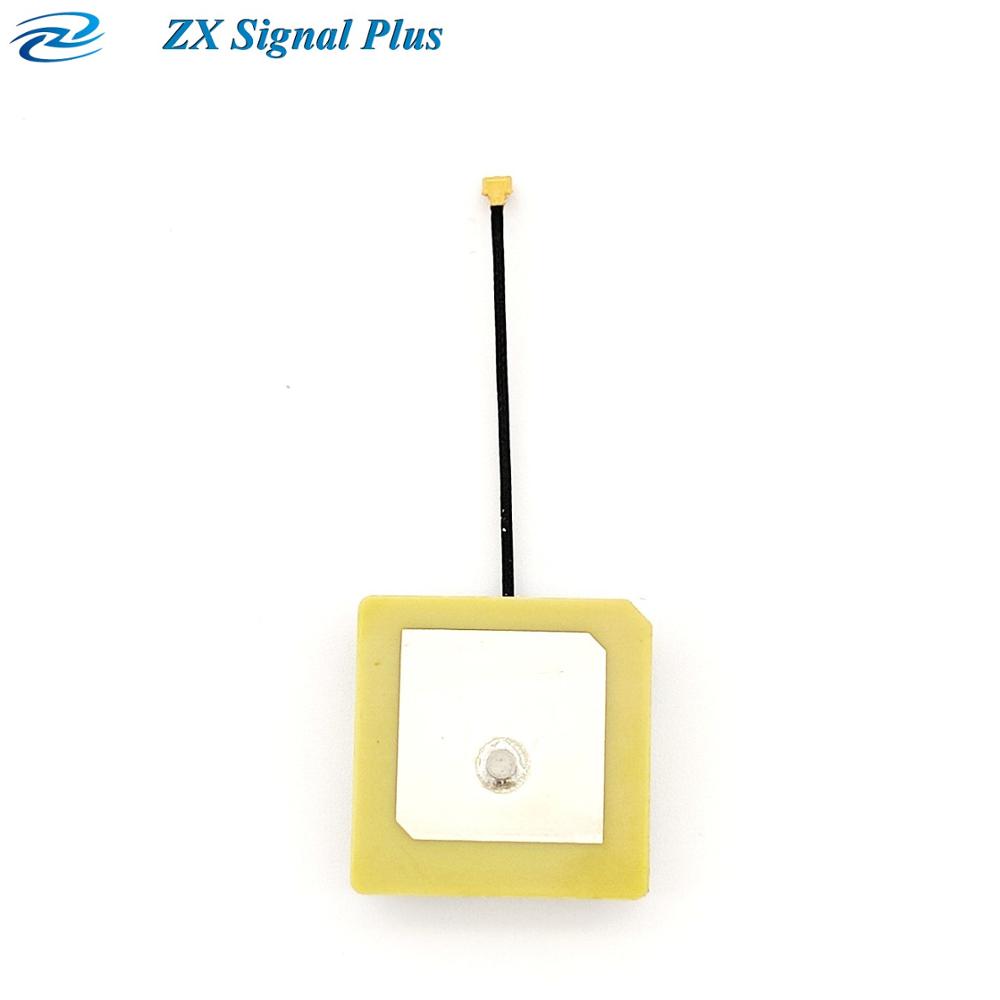

Hot Sale 18*18mm GNSS Ceramic Patch Active GPS Antenna
Hot Sale 18*18mm GNSS Ceramic Patch Active GPS Antenna

Hot Sale 18*18mm GNSS Ceramic Patch Active GPS Antenna

Model NO.
ZX-G15
Country of Origin
Shanghai,China
Quantity:

12

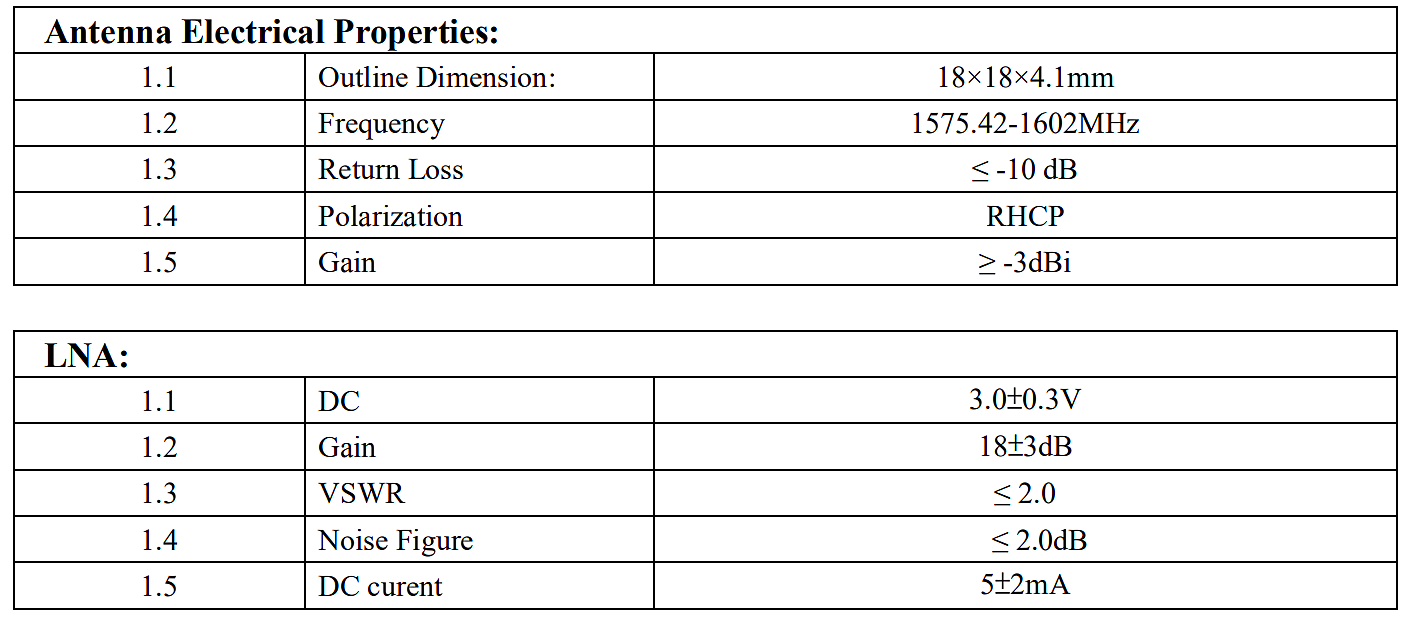

Specifications

Frequency range1517.42 MHz
Band with≥5 MHz
V.S.W R≤2.0
Gain3dBic typical
Axial Ratio5dB Max
Impedance50 ohm
PolarizationRight Hand Circular Polarization

  • Model Number：ZX-G15
  • Brand Name：SignalPlus
  • Place of Origin：Shanghai,China
  • 18X18x4 单馈有源.pdf：Downloads

Send Message

*
*
* clear input
* clear input

Related Products

GPS Internal Active Antenna with RF Cable Ipex Connector Active Antenna
GPS Internal Active Antenna with RF Cable Ipex Connector Active Antenna
Model NO. ZX-G17
High Quality 25*25*4mm Terminal Internal Positive Active Ipex GPS Antenna Antenna
High Quality 25*25*4mm Terminal Internal Positive Active Ipex GPS Antenna Antenna
Model NO. ZX-G16
Ceramic Patch GPS High Quality Antenna Very Small 1575.42Mhz
Ceramic Patch GPS High Quality Antenna Very Small 1575.42Mhz
Model NO. ZX-G14
Mini Internal GPS GLONASS Passive Patch Ceramic Round Antenna
Mini Internal GPS GLONASS Passive Patch Ceramic Round Antenna
Model NO. ZX-G13
Custom Made SMT Patch Type GPS SMT Antenna Passive Internal Ceramic Antenna
Custom Made SMT Patch Type GPS SMT Antenna Passive Internal Ceramic Antenna
Model NO. ZX-G12
Factory Price 18*18*2mm RTK GPS and GLONASS Antenna
Factory Price 18*18*2mm RTK GPS and GLONASS Antenna
Model NO. ZX-G11
Hot Sale 15*15*2mm Internal Ceramic Patch Small Passive GPS Antenna
Hot Sale 15*15*2mm Internal Ceramic Patch Small Passive GPS Antenna
Model NO. ZX-G10

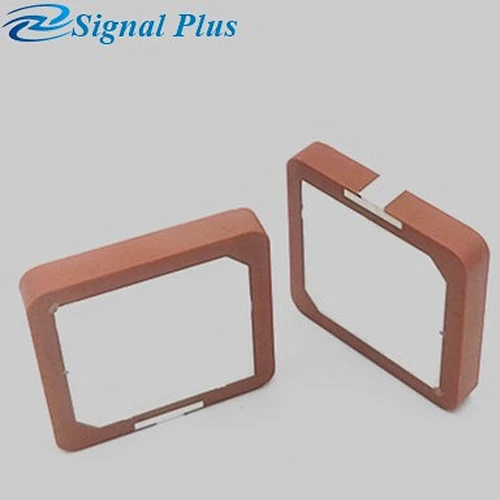

Terminal Built-in GPS passive IPEX Terminal GPS Module Ceramic Patch Antenna
