Antena exterior impermeable 698-3800MHz 7.5dBi Mimo Panel

Electrical Specifications

Frequency Range

MHz

698-960

1710-2700

3300-3800

Gain

dBi

6.0±1

7.5±1

7.5±1

Polarization

±45°

Beam width

Horizontal

deg

75

70

68

Vertical

70

70

60

VSWR

≤1.8

≤1.8

≤1.8

Isolation

dB

>20

>23

>23

PIM, 3rd Order, 2 x 20 W,

dBc

≤-153

Input Power per Port, maximum

watts

50

Mechanical Specifications

Dimensions,HxWxD

mm

308x190x82

Weight, without Mounting Kit

kg

1.0

Radome Material and Color

ABS, White, RAL9003

Mounting Kit

On-wall

Connector Type and Location

N-Female×2

Operational Temperature

oC

-55 to +60

Operational Humidity

%

< 95

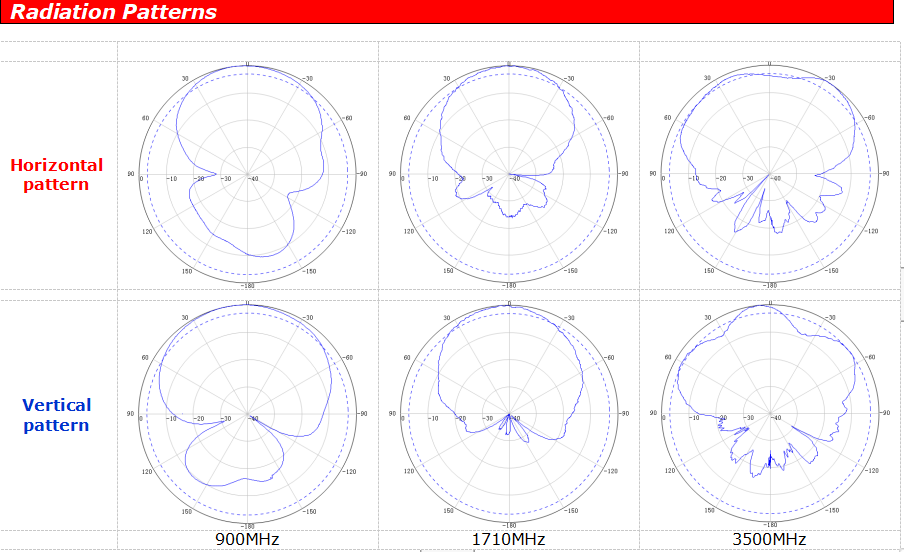

Radiation Patterns

Features and Product Description

Antena direccional de banda ancha, cobertura 698MHz - 3800MHz.
Normalmente se utiliza en la distribución en interiores de servicios MIMO y LTE.
Compacto, ligero y fácil de instalar.
PIM<-153dBc @ 2x20 W.
Polarización dual ± 45 ° para toda la banda 698-3800Mhz.
N-hembra.
