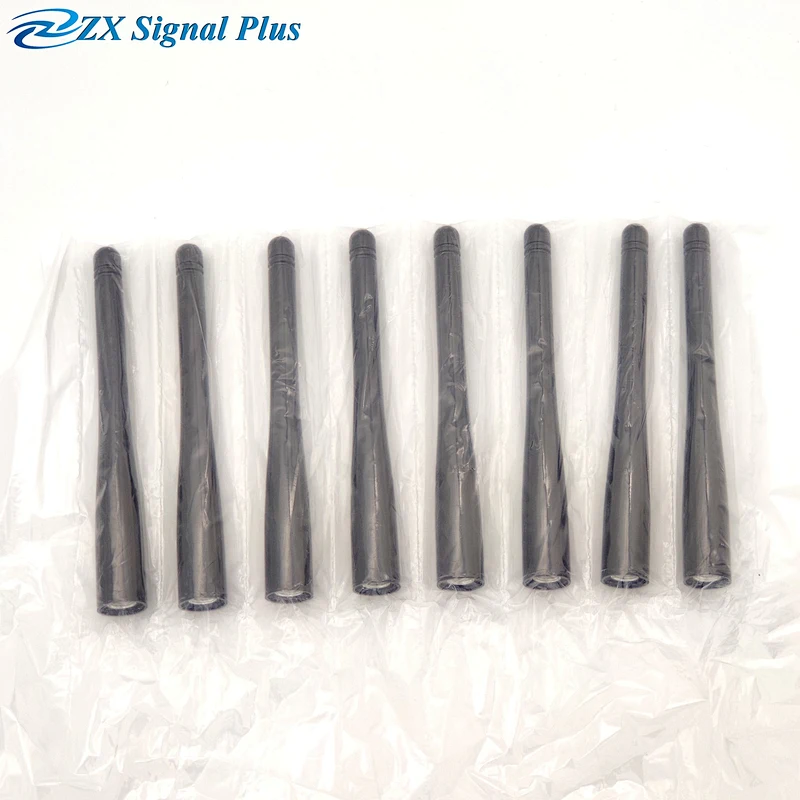

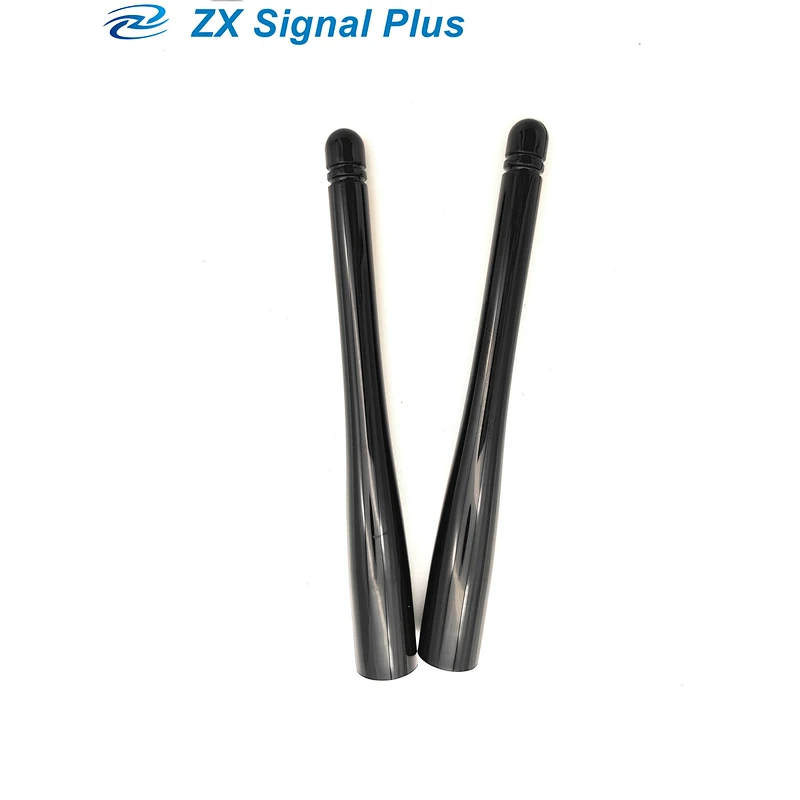

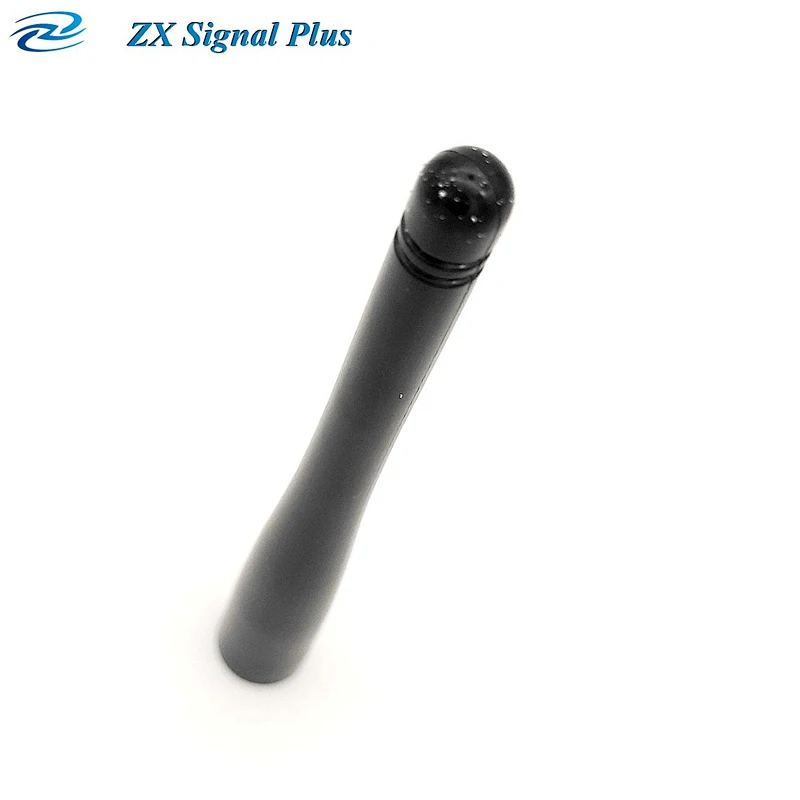

2.4GHz-2.5GHz External WIFI SMA Female Antenna
2.4GHz-2.5GHz External WIFI SMA Female Antenna
2.4GHz-2.5GHz External WIFI SMA Female Antenna
2.4GHz-2.5GHz External WIFI SMA Female Antenna
2.4GHz-2.5GHz External WIFI SMA Female Antenna
2.4GHz-2.5GHz External WIFI SMA Female Antenna
2.4GHz-2.5GHz External WIFI SMA Female Antenna
2.4GHz-2.5GHz External WIFI SMA Female Antenna
2.4GHz-2.5GHz External WIFI SMA Female Antenna
2.4GHz-2.5GHz External WIFI SMA Female Antenna
2.4GHz-2.5GHz External WIFI SMA Female Antenna
2.4GHz-2.5GHz External WIFI SMA Female Antenna
2.4GHz-2.5GHz External WIFI SMA Female Antenna

2.4GHz-2.5GHz External WIFI SMA Female Antenna

Model NO.
ZX-W10
Minimum order quantity
1
Quantity:
Product Description

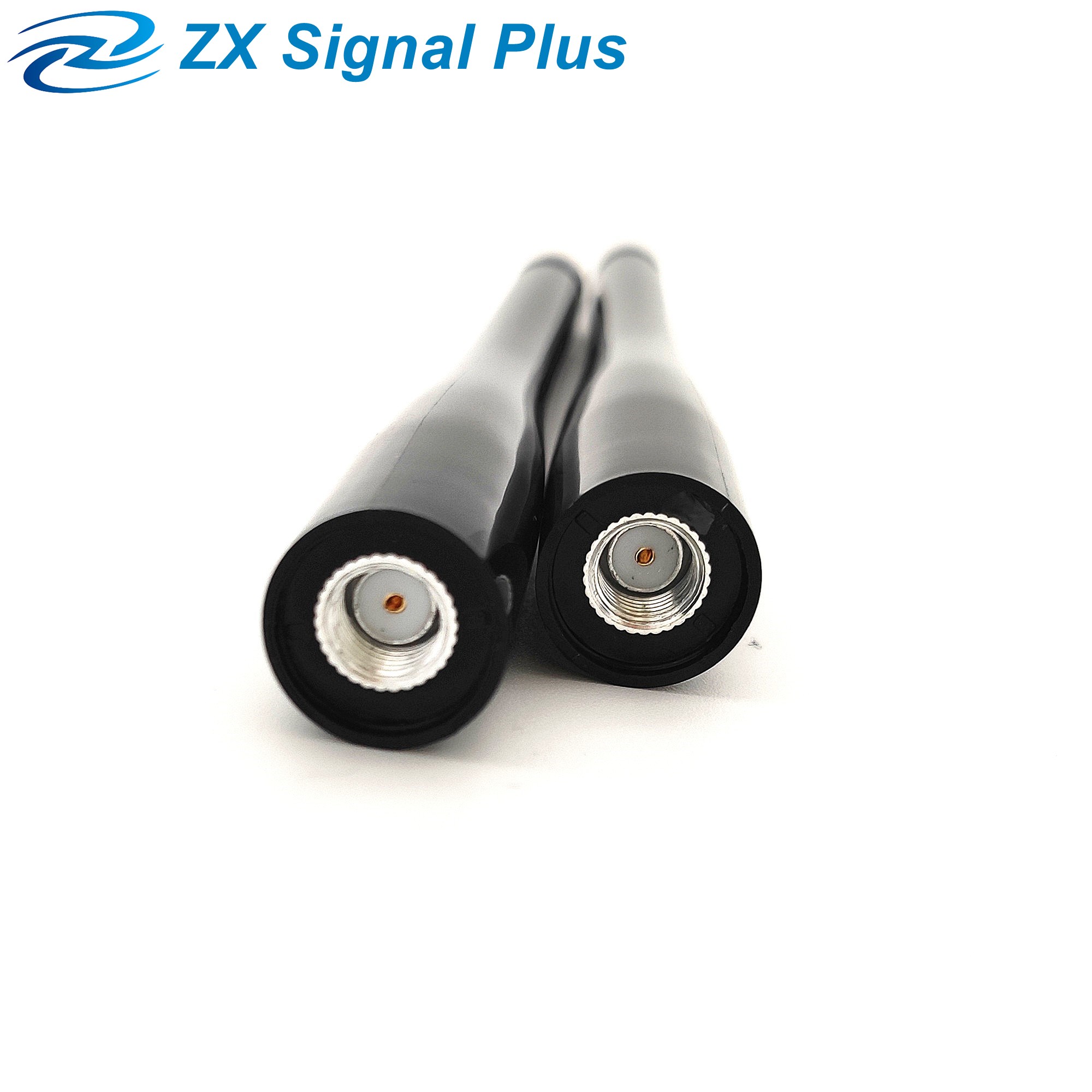

3dBi WIFI 2.4-2.5G waterproof polish with SMA female connector.

1. 3dBi antenna, connector is customization.
2. Straight antenna (can not foldable).
3. General appearance, black.
Specification
3dBi WIFI/WLAN Antenna
value
Frequency (MHz)
2.4-2.5GHz
Gain (dBi)
3
VSWR
≤2.0
Polarization
Vertical
Maxpower
10W

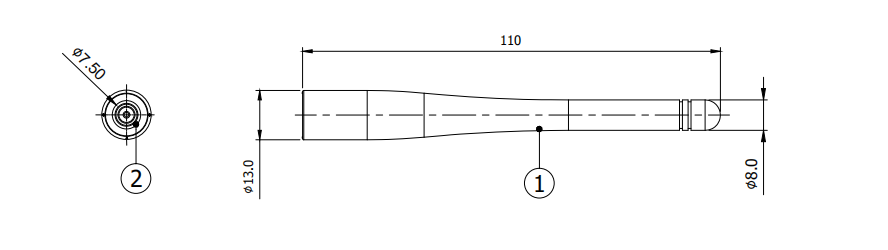

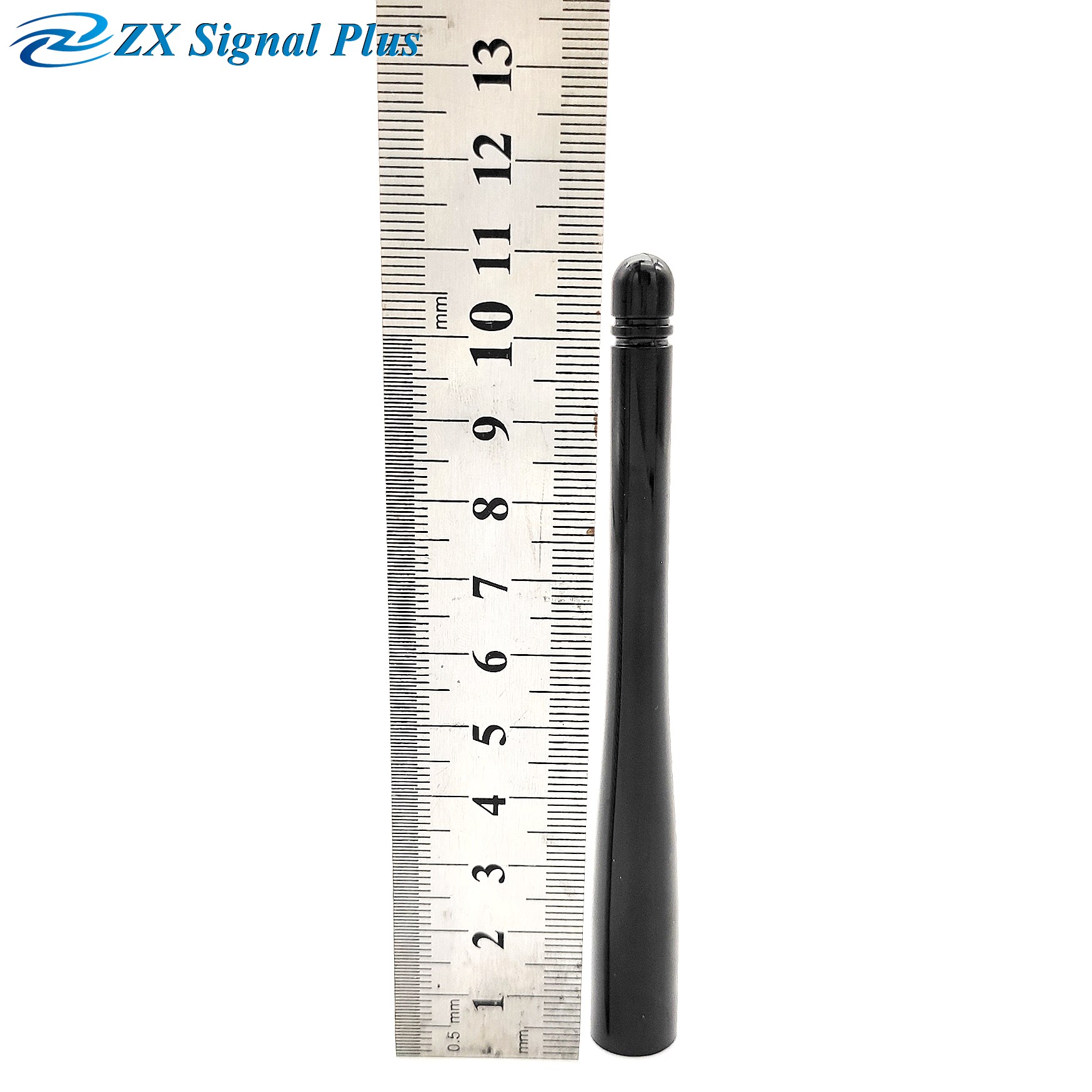

Size (mm)
Dia 13x 110
