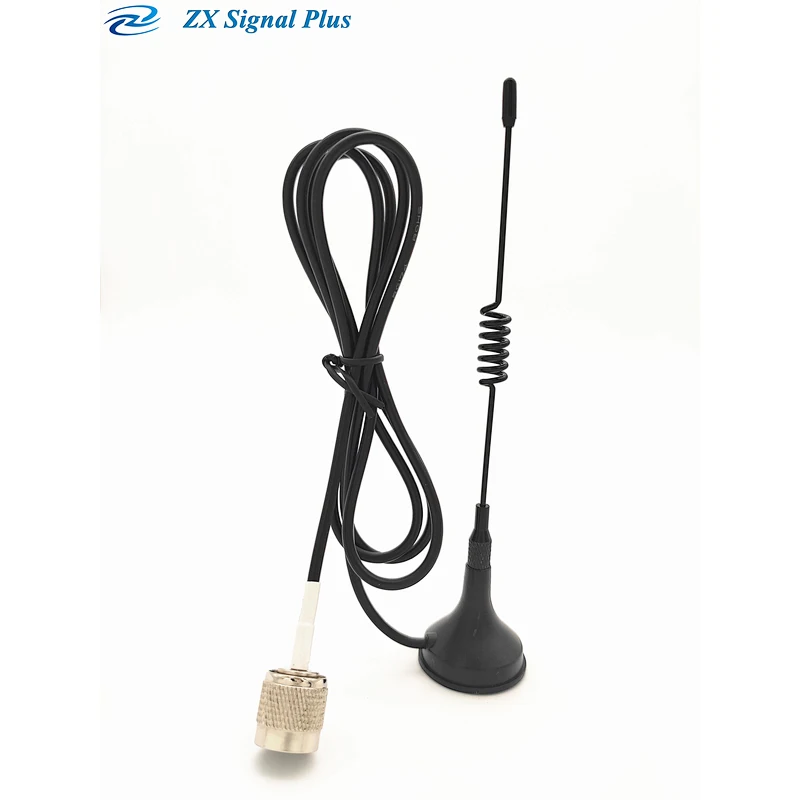

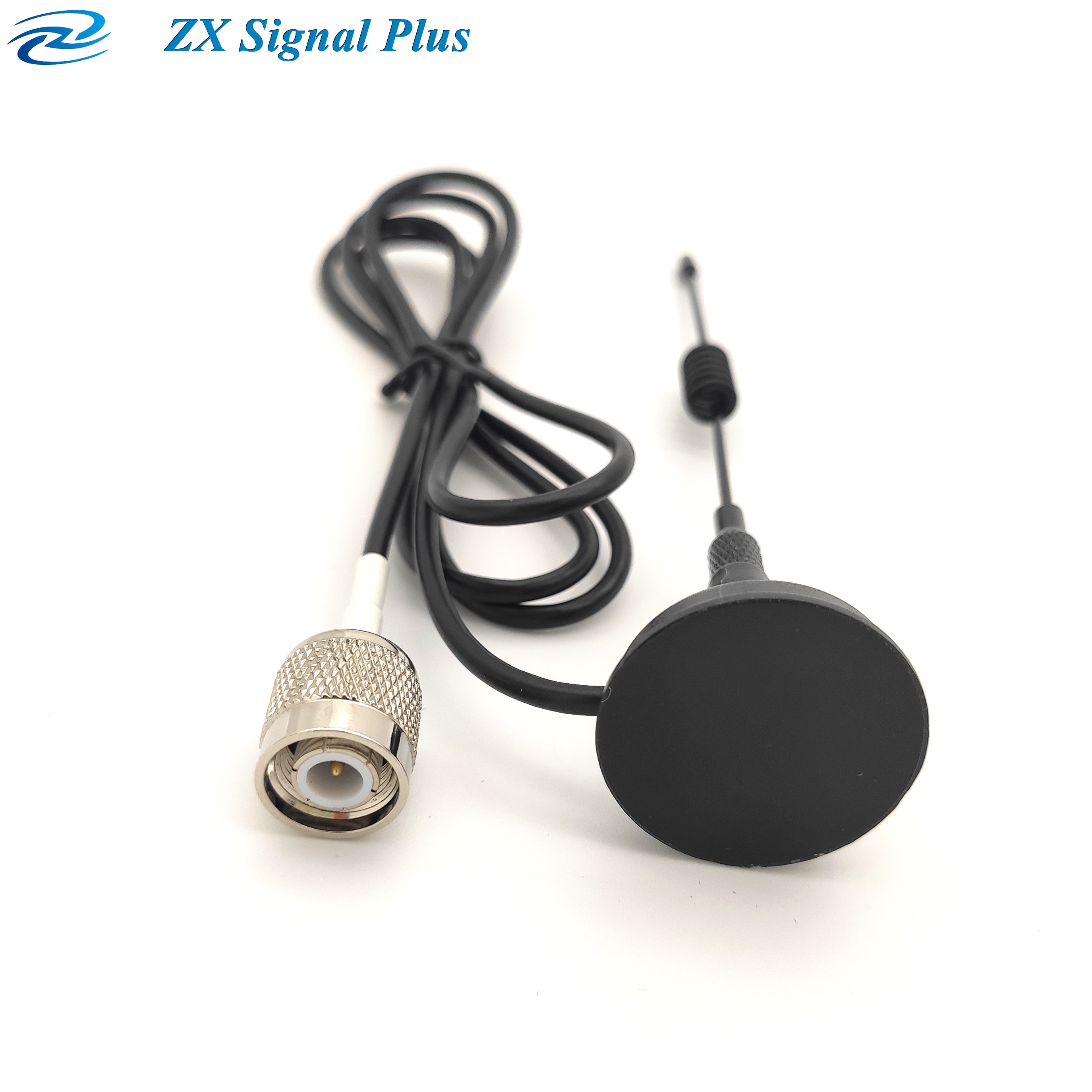

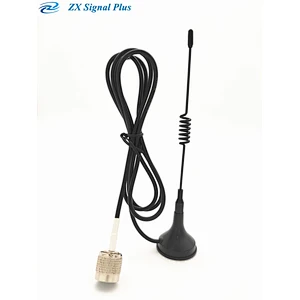

Cable Mounted 2.4-2.5GHz External WIFI Magnetic Antenna with TNC Connector
Cable Mounted 2.4-2.5GHz External WIFI Magnetic Antenna with TNC Connector
Cable Mounted 2.4-2.5GHz External WIFI Magnetic Antenna with TNC Connector
Cable Mounted 2.4-2.5GHz External WIFI Magnetic Antenna with TNC Connector
Cable Mounted 2.4-2.5GHz External WIFI Magnetic Antenna with TNC Connector
Cable Mounted 2.4-2.5GHz External WIFI Magnetic Antenna with TNC Connector
Cable Mounted 2.4-2.5GHz External WIFI Magnetic Antenna with TNC Connector

Cable Mounted 2.4-2.5GHz External WIFI Magnetic Antenna with TNC Connector

Model NO.
ZX-W08
Minimum order quantity
1
Quantity:
Product Description

Cable Mounted 2.4-2.5GHz External WIFI WLAN magnetic antenna with tnc connector

1. 2dBi antenna; connector is customization
2. RG174 cable/ 1500mm
3. General appearance, black
TNC male RG58 cable; 1 PC O-ring
Connector: TNC male
Cable length: 2 feet
Impedance: 50 ohm
As a professional and high quality magnetic antenna with tnc connector supplier in China, we provides all kinds of customized magnetic antenna with tnc connector. You can wholesale and buy magnetic antenna with tnc connector for sale here.
high quality magnetic antenna with tnc connector
Specification
2dBi WIFI/WLAN Antenna
value
Frequency (MHz)
2.4-2.5GHz
Gain (dBi)
2
VSWR
≤2.0
Polarization
Vertical
Maxpower
10W

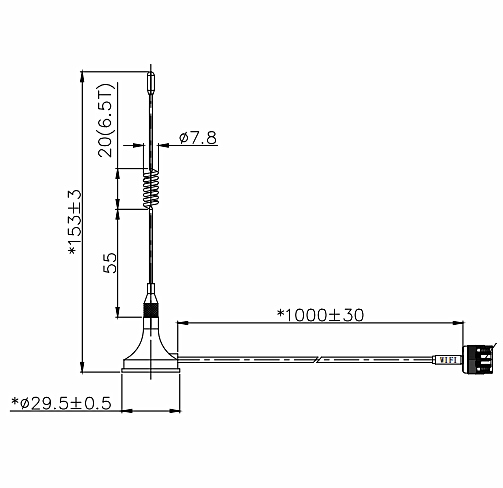

Size (mm)
Dia 29.5x 153
magnetic antenna with tnc connector manufacturers
