Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna
Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna
Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna
Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna
Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna
Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna
Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna
Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna
Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna
Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna
Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna
Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna
Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna

Car Use Waterproof Antena Amplifier Circuit GPS Outdoor Antenna

Model NO.
ZX-G19
Quantity:
  • Product name:GPS Antenna
  • Frequency Range-MHz:GPS
  • Gain (dBi):4.5dBI
  • VSWR:≤2.0
  • Polarization Type:RHCP
  • Connector type:N type/ SMA/ TNC/ BNC
  • Maxpower:10W
  • Impedance:50 Ohm
  • Cable Type/ Length:RG58/ 500mm
  • Size (mm):dia148x60 mm
  • Place of Origin:CN;SHG
  • Brand Name:ZXSignal
  • Model Number:ZX74
Product Description

High precision GNSS active antenna with N type/ TNC connector.

1. Connector is customization.
2. Applied to Tbox/ car/ ship ect.

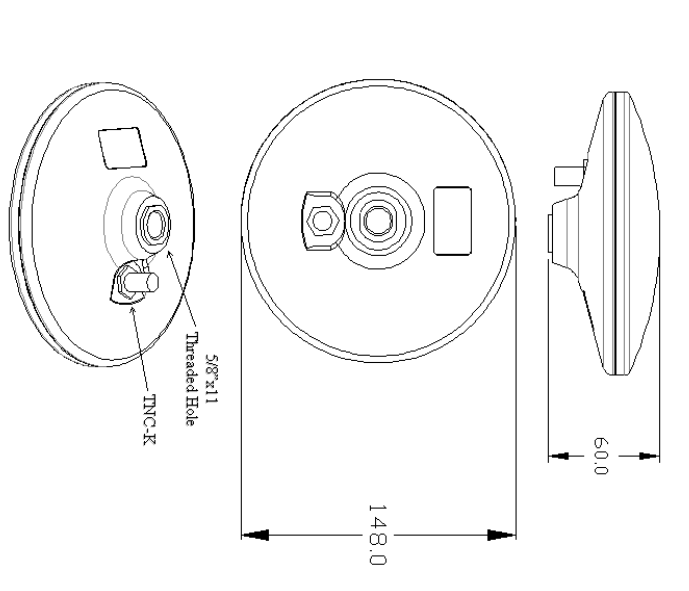

3. Size: dia148x60 mm
Specification
4.5dBi GPS Antenna
value
Frequency (MHz)
GPS: L1/ L2/ L5
BEIDOU: B1/ B2/ B3
GLONASS: G1/ G2
Gain (dBi)
4.5
VSWR
≤2.0
Polarization
RHCP
Connector
N Type/ SMA/ BNC/ TNC
Cable Type/ Length
RG 58/ 500mm
  • Model Number：ZX-G19
  • Brand Name：SignalPlus
  • Place of Origin：Shanghai,China
  • GPS plate antenna with high gain.pdf：Downloads
