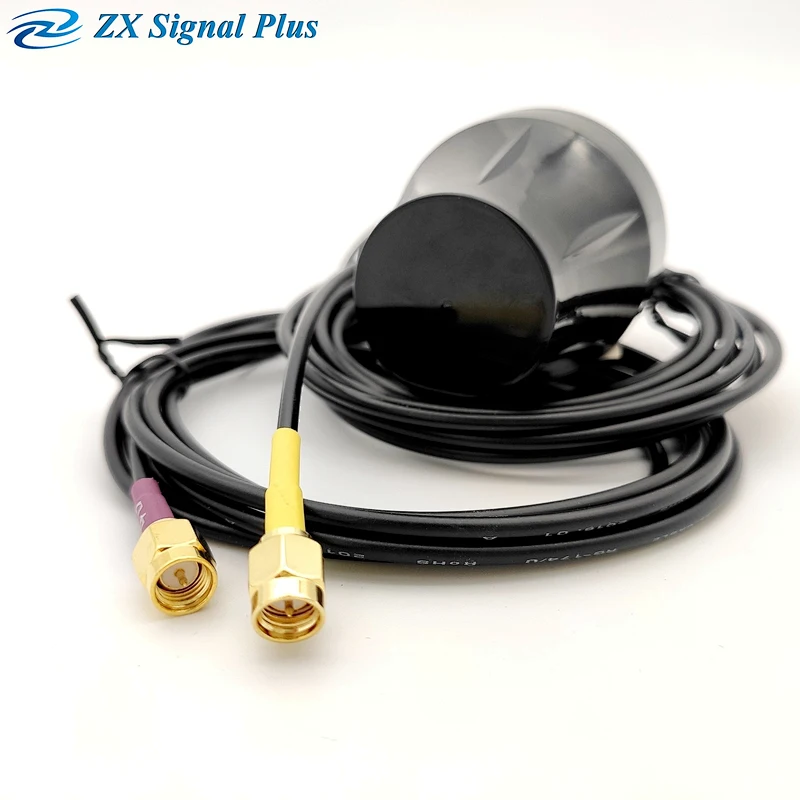

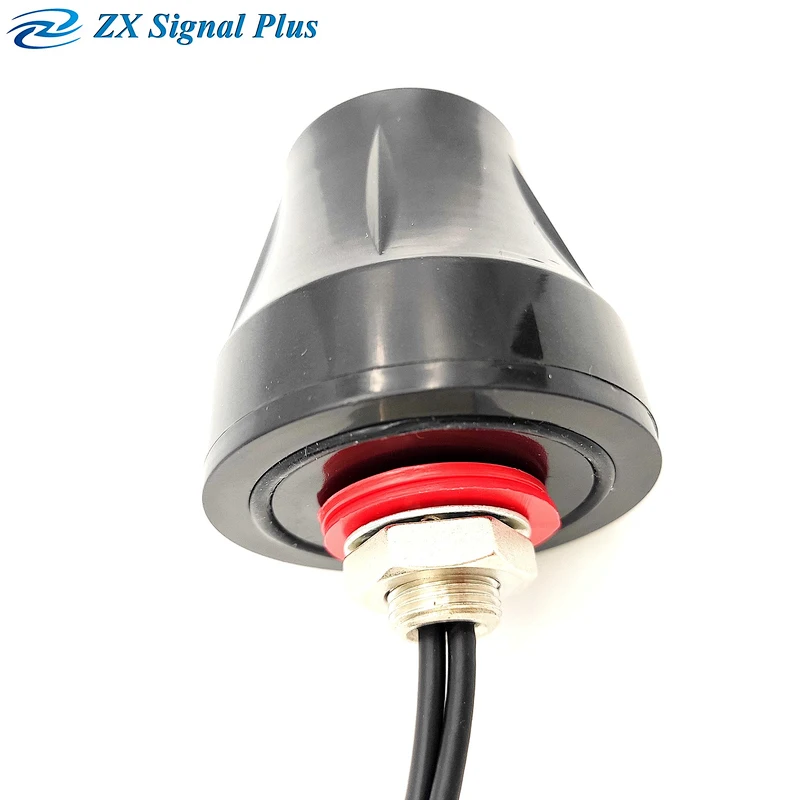

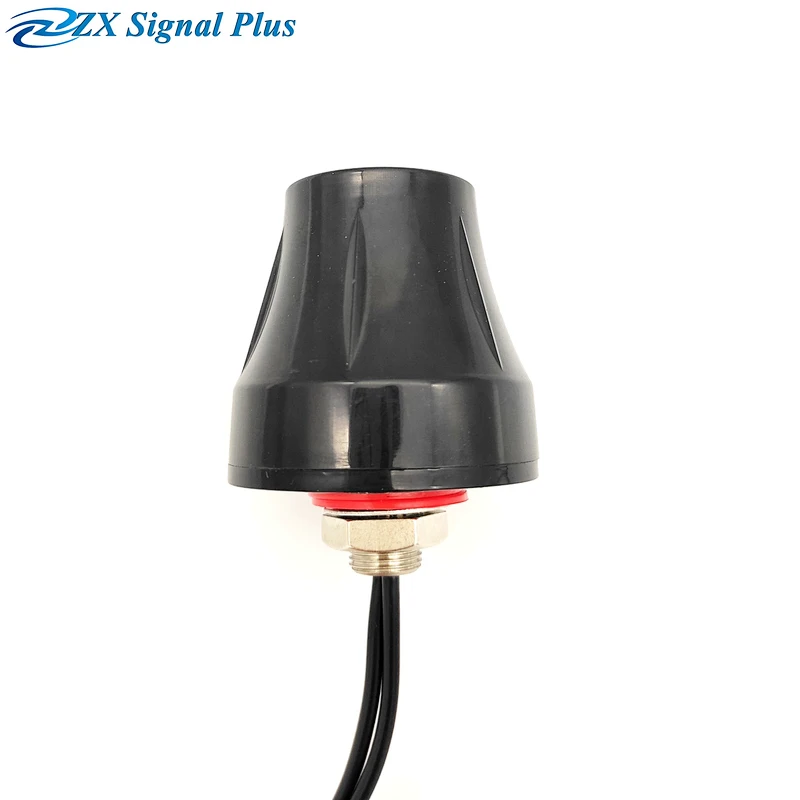

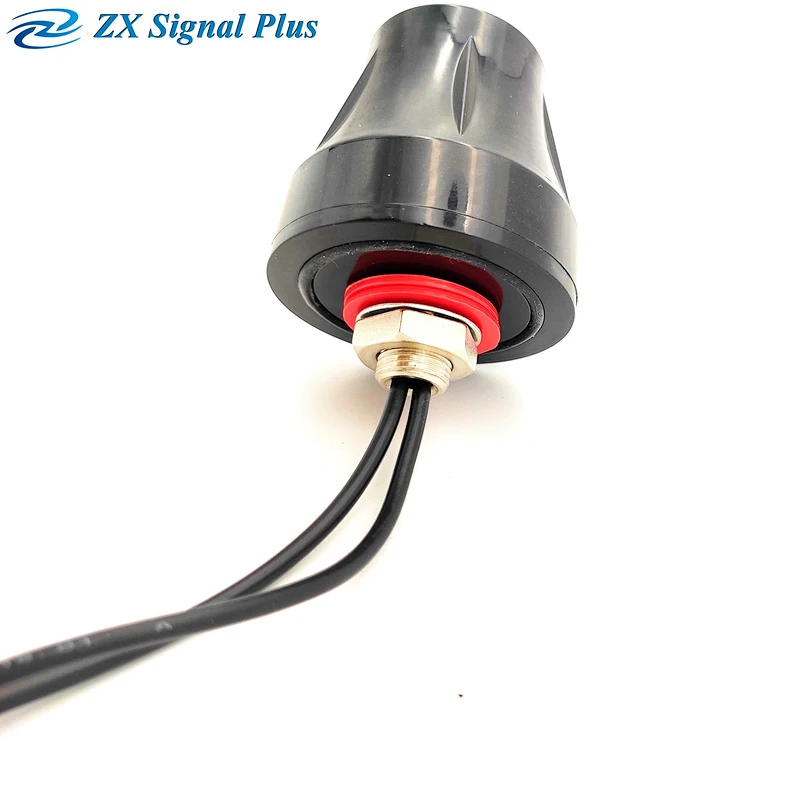

Active 4G LTE Antenna GPS Magnetic Antenna 30dBi
Active 4G LTE Antenna GPS Magnetic Antenna 30dBi
Active 4G LTE Antenna GPS Magnetic Antenna 30dBi
Active 4G LTE Antenna GPS Magnetic Antenna 30dBi
Active 4G LTE Antenna GPS Magnetic Antenna 30dBi
Active 4G LTE Antenna GPS Magnetic Antenna 30dBi
Active 4G LTE Antenna GPS Magnetic Antenna 30dBi
Active 4G LTE Antenna GPS Magnetic Antenna 30dBi
Active 4G LTE Antenna GPS Magnetic Antenna 30dBi
Active 4G LTE Antenna GPS Magnetic Antenna 30dBi
Active 4G LTE Antenna GPS Magnetic Antenna 30dBi
Active 4G LTE Antenna GPS Magnetic Antenna 30dBi
Active 4G LTE Antenna GPS Magnetic Antenna 30dBi

Active 4G LTE Antenna GPS Magnetic Antenna 30dBi

Model NO.
ZX-G20
Quantity:
  • Product name:GPS/LTE Antenna
  • Frequency Range-MHz:GPS: 1575.42 ± 1.023/ 1561.096 ± 2.046 MHz LTE: 698-2700MHz
  • Gain (dBi):GPS: 30dBI LTE: 3dBi
  • VSWR:≤2.0
  • Polarization Type:Linear for LTE & RHCP for GPS
  • Connector type:SMA Male
  • Maxpower:10W
  • Impedance:50 Ohm
  • Cable Type/ Length:RG174/ customization

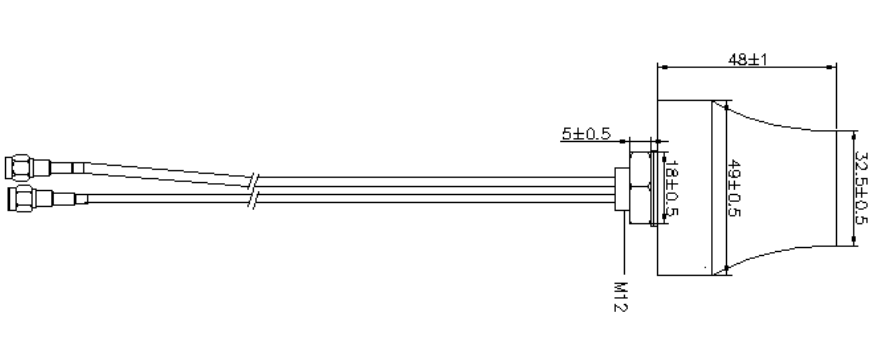

  • Size (mm):dia49 x 48mm
  • Place of Origin:CN;SHG
  • Brand Name:ZXSignal
  • Model Number:ZX54

Product Description

LTE +GPS Combo Active Antenna with SMA- Male Connector

Compatible with carrier networks: Verizon, AT&T, T-Mobile, Sprint, etc.; frequency range: GPS: 1575.42 ± 1.023/ 1561.096 ± 2.046 MHz LTE: 698-2700MHz; gain: 30dBi; direction: omnidirectional; waterproof: rainproof;
Features: fixed wall mount; through-hole installation; antenna mounting screw diameter: M12 11.76mm-11.95mm; cable length: 3m/10 feet; connector: RP-SMA male connector; accessory connector adapter: SMA male connector adapter;
External omnidirectional antenna (passive); enhanced cellular signal (effective in low coverage areas); 10 feet cable length, RP-SM female and male connector; bracket for easy installation; does not require any external power supply;
Compatible with 4G LTE cellular tracking camera, game camera, wildlife hunting camera, outdoor security camera, cellular surveillance camera;
Packing list: 1 x antenna, 1 x SMA male connector adapter, 1 x wall bracket, 4 x screws (as shown in the picture);
As a professional and high quality 4g lte outdoor antenna supplier in China, we provides all kinds of customized 4g lte outdoor antenna. You can wholesale and buy 4g lte outdoor antenna for sale here.
4g lte outdoor antenna suppliers
Specification
3dBi GPS Antenna
value
Frequency (MHz)
GPS: 1575.42 ± 1.023/ 1561.096 ± 2.046 MHz
LTE: 698-2700MHz
Gain (dBi)
3
VSWR
≤2.0
Polarization
Linear for LTE & RHCP for GPS
Connector
SMA Male
Cable Type/ Length
RG174/ Customization
4g lte outdoor antenna manufacturers
  • Antenna Specs-原有.pdf:Downloads
  • Place of Origin:Shanghai,China
  • Brand Name:SignalPlus
  • Model Number:ZX-G20
