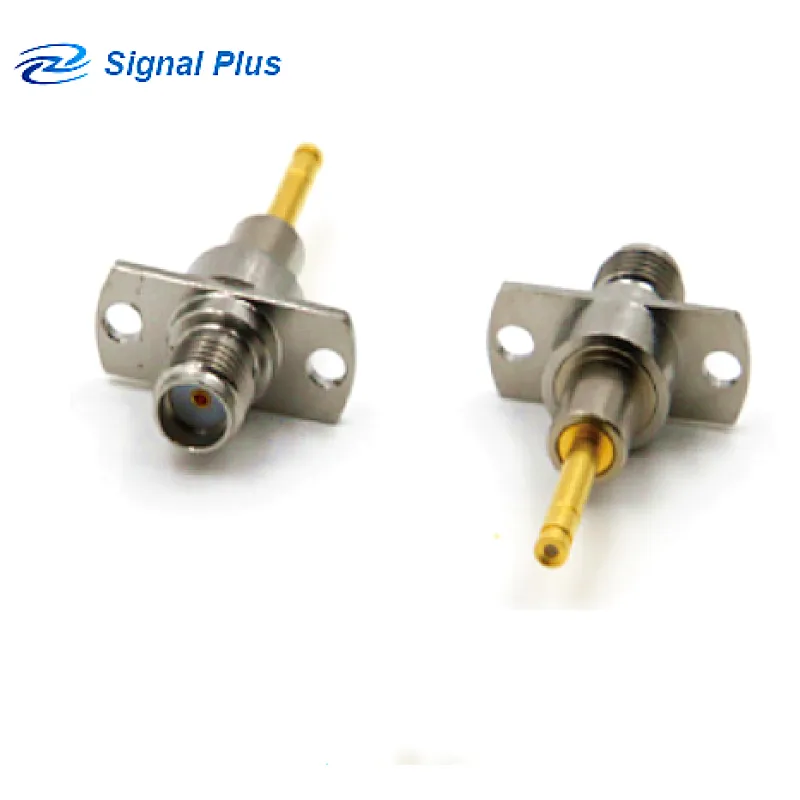

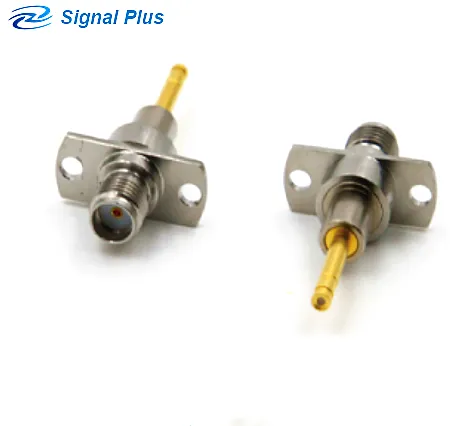

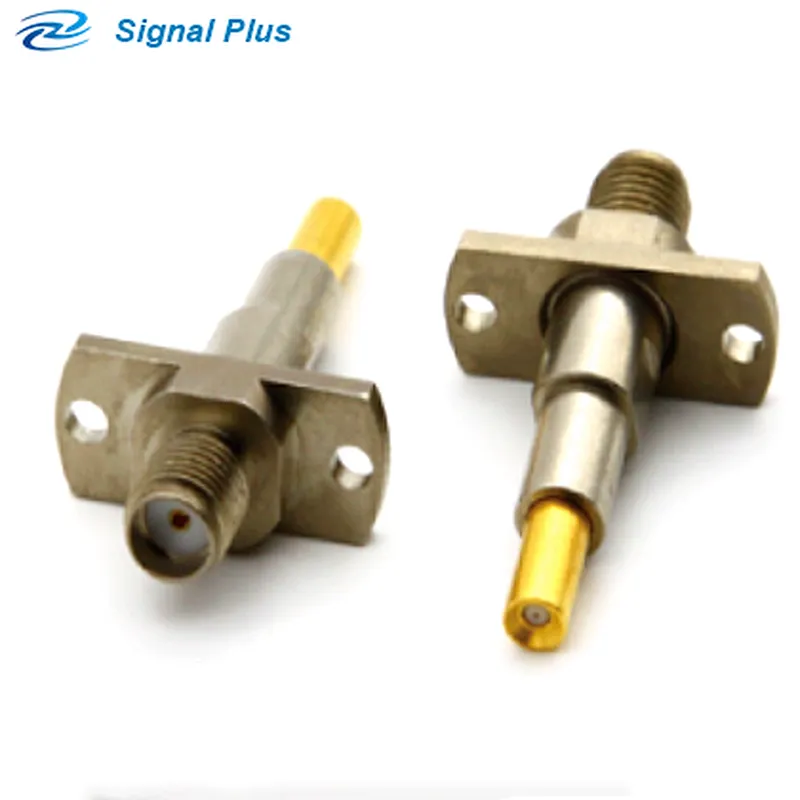

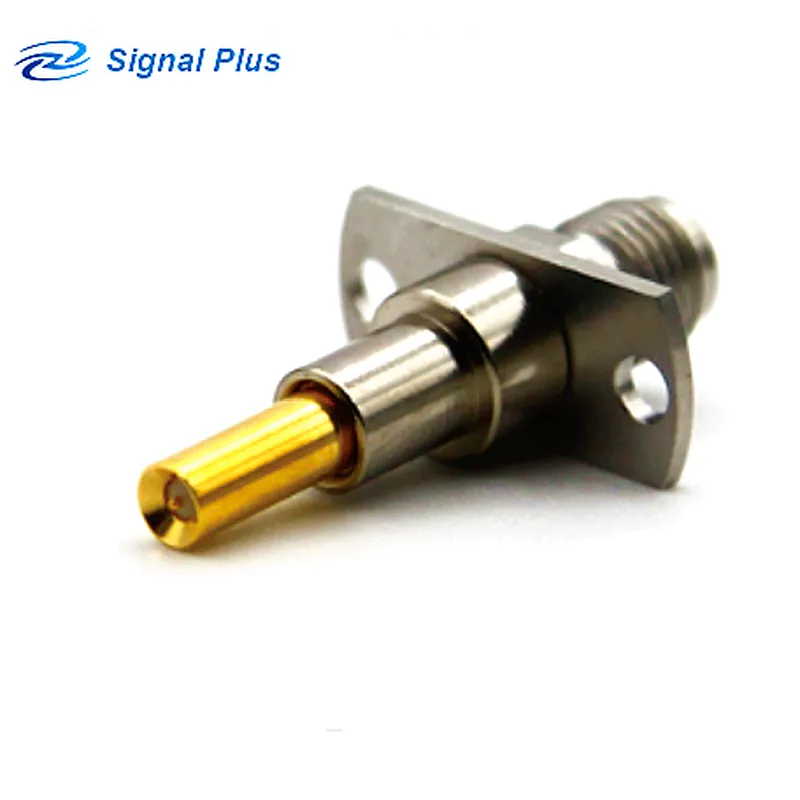

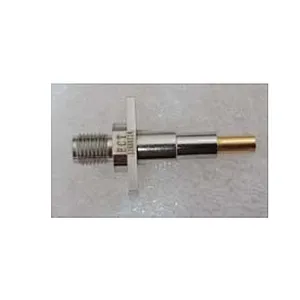

ECT USS Mini RF Antenna Switch Applied to Specified Testing Cable Assembly Product
ECT USS Mini RF Antenna Switch Applied to Specified Testing Cable Assembly Product
ECT USS Mini RF Antenna Switch Applied to Specified Testing Cable Assembly Product
ECT USS Mini RF Antenna Switch Applied to Specified Testing Cable Assembly Product
ECT USS Mini RF Antenna Switch Applied to Specified Testing Cable Assembly Product
ECT USS Mini RF Antenna Switch Applied to Specified Testing Cable Assembly Product
ECT USS Mini RF Antenna Switch Applied to Specified Testing Cable Assembly Product
ECT USS Mini RF Antenna Switch Applied to Specified Testing Cable Assembly Product
ECT USS Mini RF Antenna Switch Applied to Specified Testing Cable Assembly Product

ECT USS Mini RF Antenna Switch Applied to Specified Testing Cable Assembly Product

Model NO.:
ZX-S03
Quantity:
  • Brand:ECT
  • Material:copper/alloy
  • Rated Voltage:300V AC
  • Operating temperature:-40℃~+85℃
  • Contact Resistance:100 mΩ max
  • Contact Stress:3.4N~4.5N
  • Durability:500 cycles
  • Type:Backshell
  • Application:telecommunication/pc board
  • Rating Current:1A
  • Place of Origin:CN;SHG
  • Brand Name:zxsignal
  • Model Number:ZX-S03

Product Description

USAGE CAUTIONS

1.The plug must be kept coaxial with the interface of the mated PCB connector or kept vertical to the PCB

and the deviation angle must be controlled within 5 degrees during the whole testing procedure, otherwise will

damage this product and reduce its service life.

2.Please do not bend the coaxial cable during testing, otherwise may reduce the testing effect or result.

If you have any other questions at any time, please let us know and feel free to contact our technical engineer.

1size

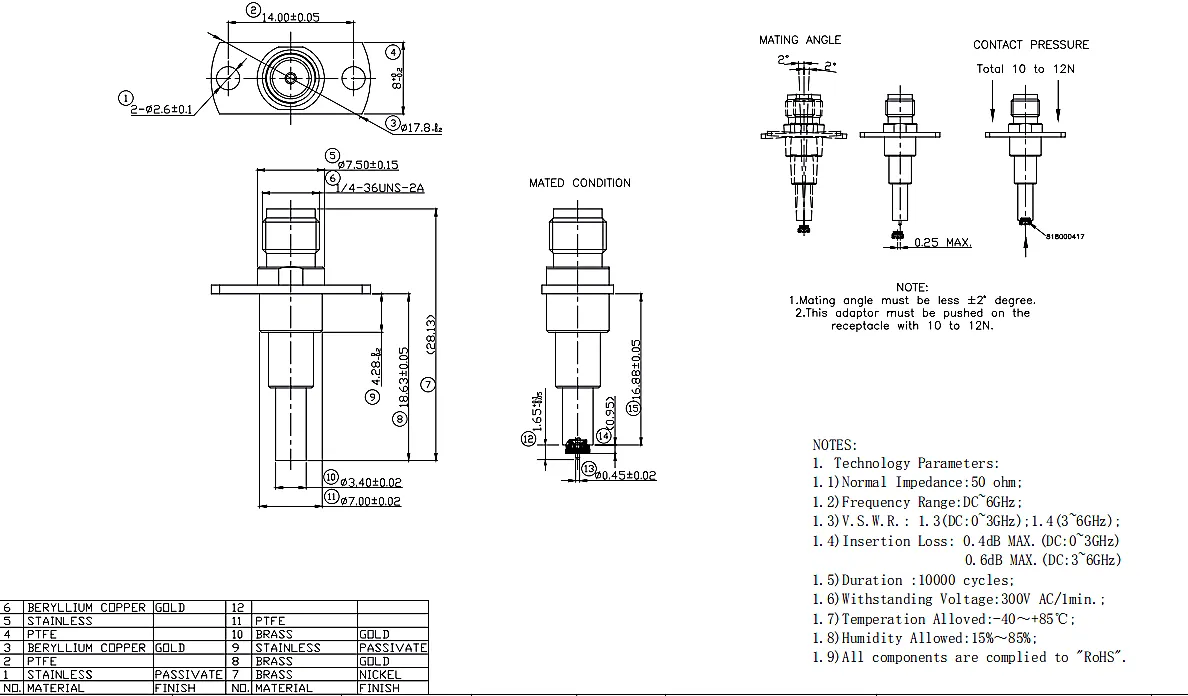

Specifications

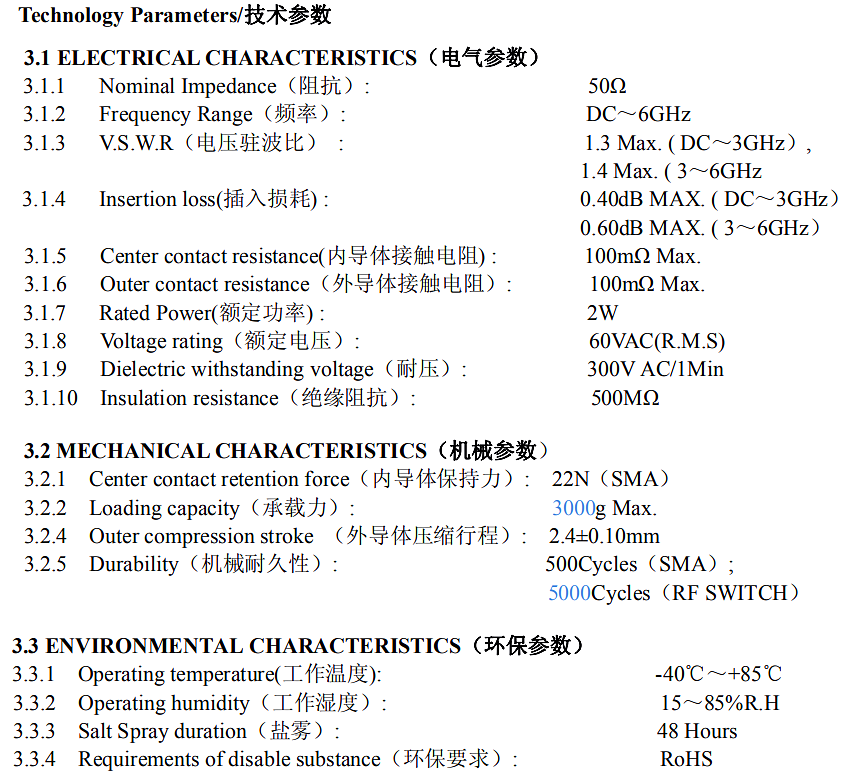

SPEC
