Model NO.
ZX-D05
Quantity:

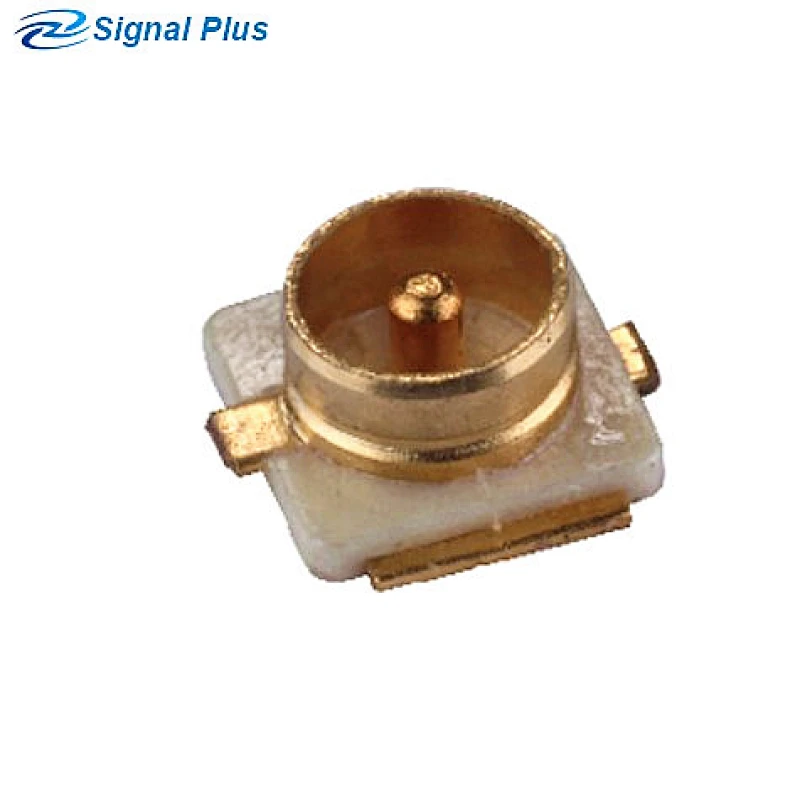

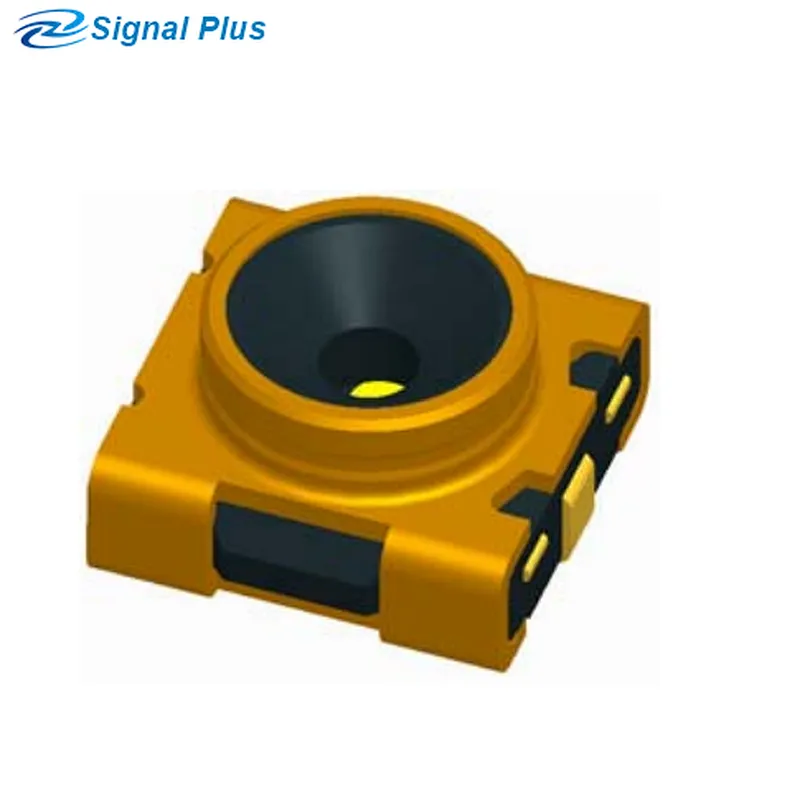

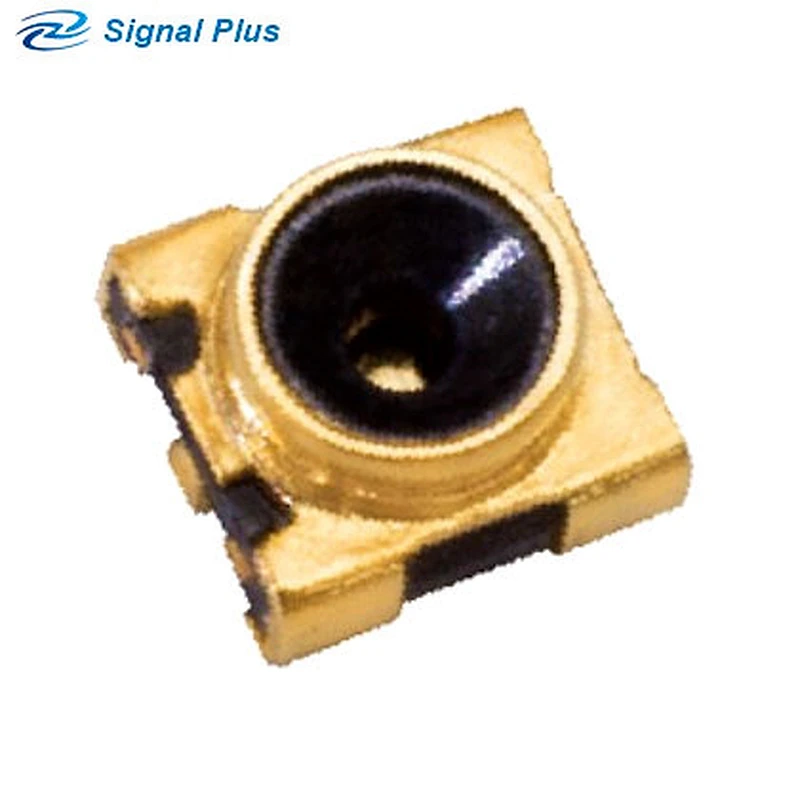

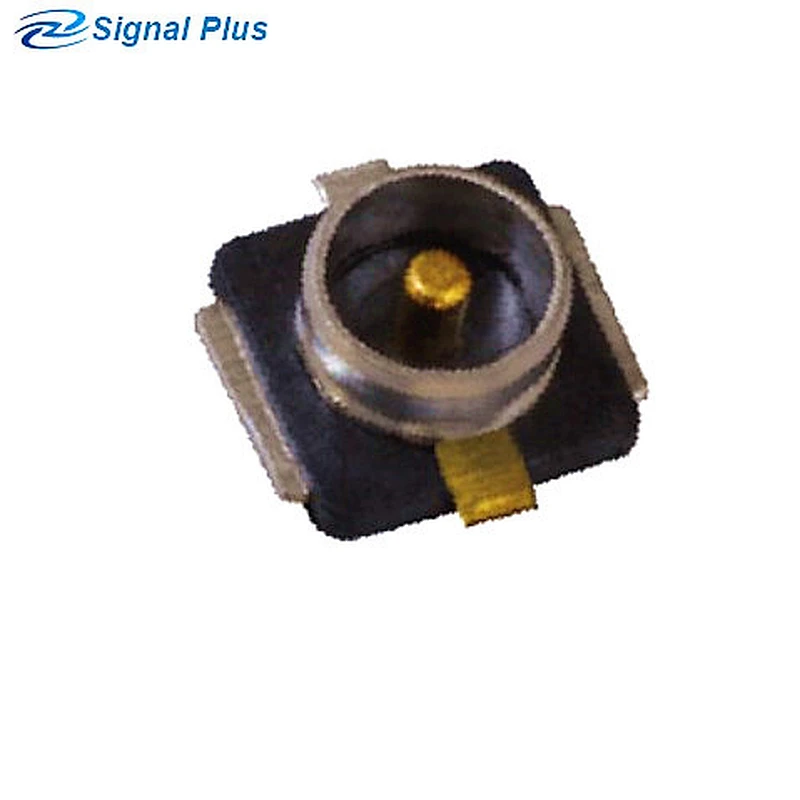

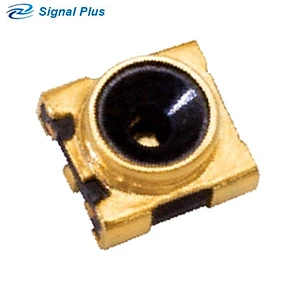

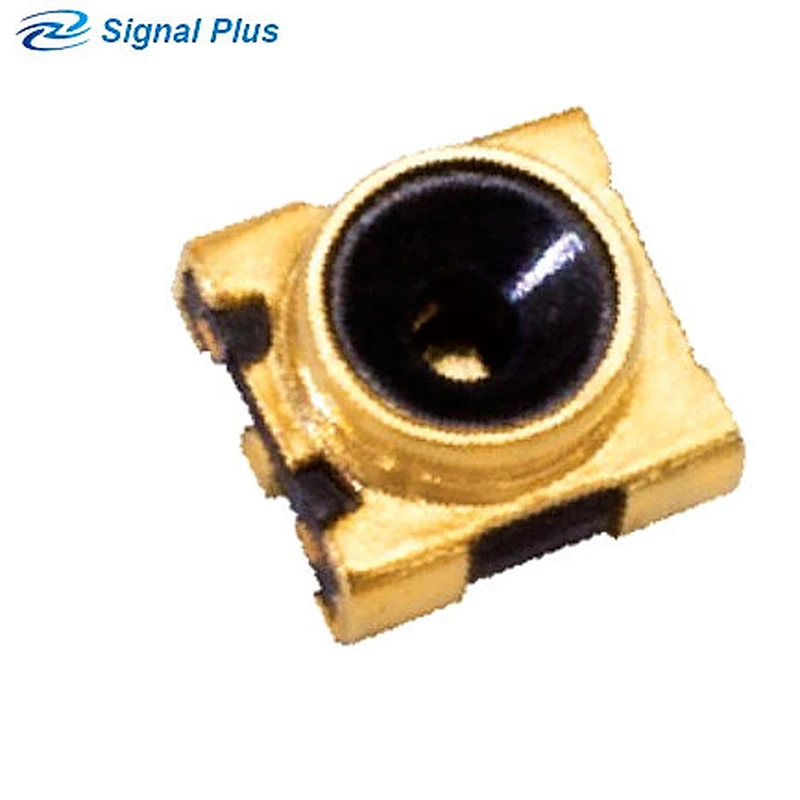

USS RF Board Circular Connector Receptacle Matched with RG 173/RG174 Antenna

  • Brand:ECT
  • Material:copper/alloy
  • Rated Voltage:250VAC (R.M.S)
  • Operating temperature:-40℃~+85℃
  • Dielectric Withstanding Voltage:300V AC
  • Voltage Standing Wave Ratio(VSWR):1.2 max ( DC~3GHz), 1.3 max (3~6GHz)

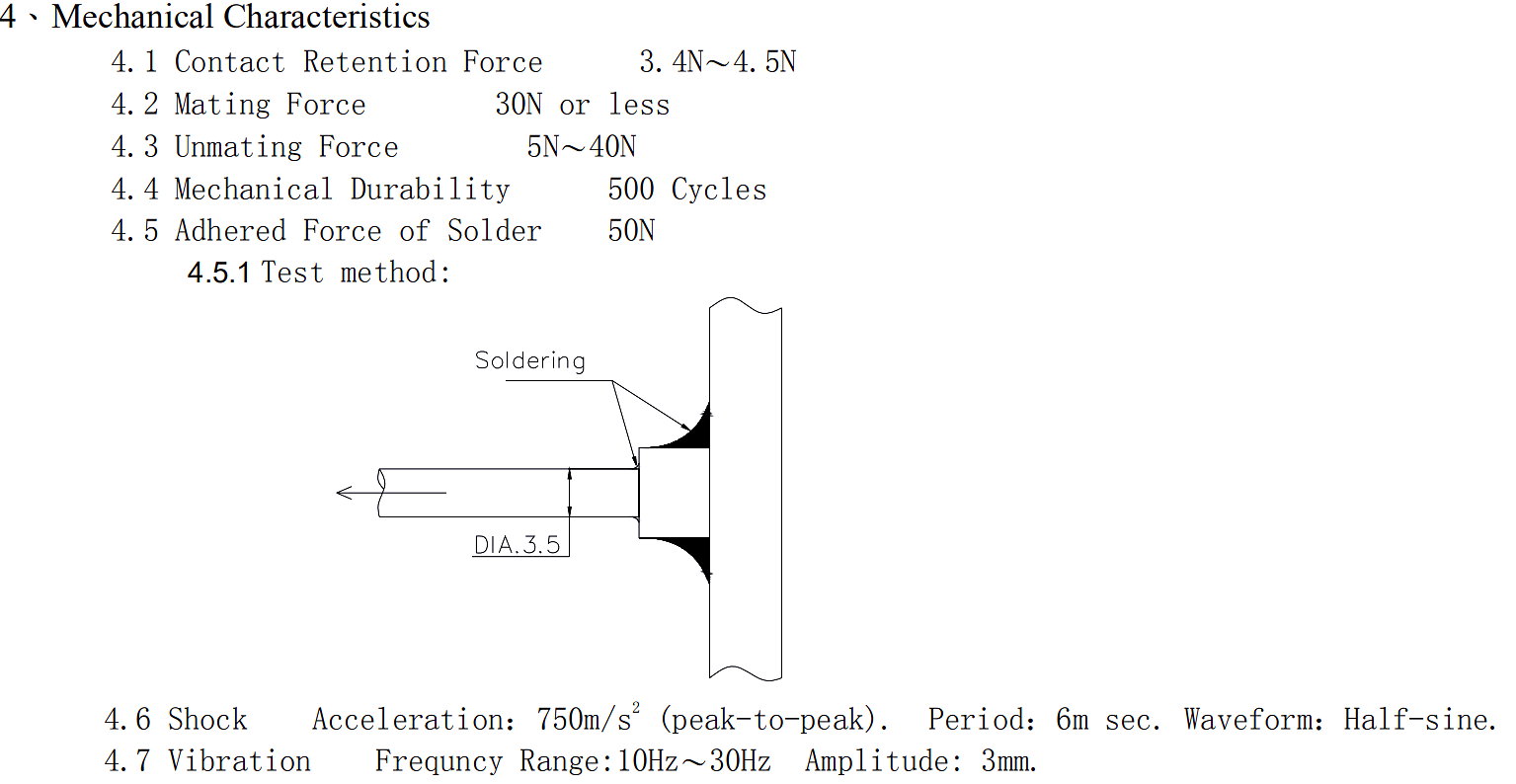

  • Mating Force:30N max
  • Type:Backshell
  • Application:telecommunication/pc board
  • Frequency Range:0-6Ghz
  • Place of Origin:CN;SHG
  • Brand Name:zxsignal
  • Model Number:ZX-D05
Product Description
- High-quality connectors, made of brass. Gold-plated contacts
- Aperture: 3.85mm/ 0.152", size: 2.5x 2.5 x 2.27cm/ 1"x 1"x 0.9"(L*W*H)
- Application of antenna, wireless LAN equipment, coaxial cable, Wi-Fi Radios external antenna
- Package includes: 1PCS adapter

We supply circular connector receptacle for different application scenarios. As a supplier, our company will offer you a bargain price. Contact us now!

2 (2)1

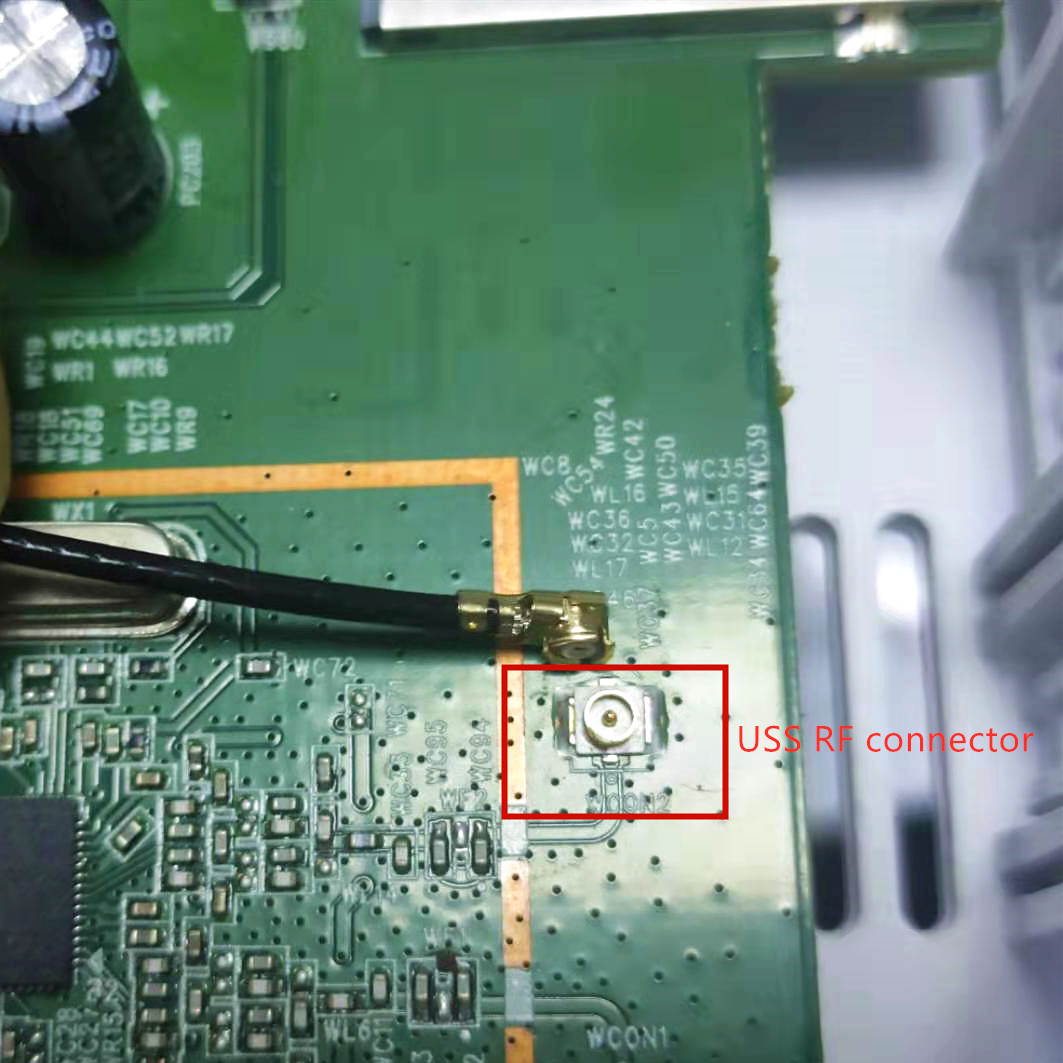

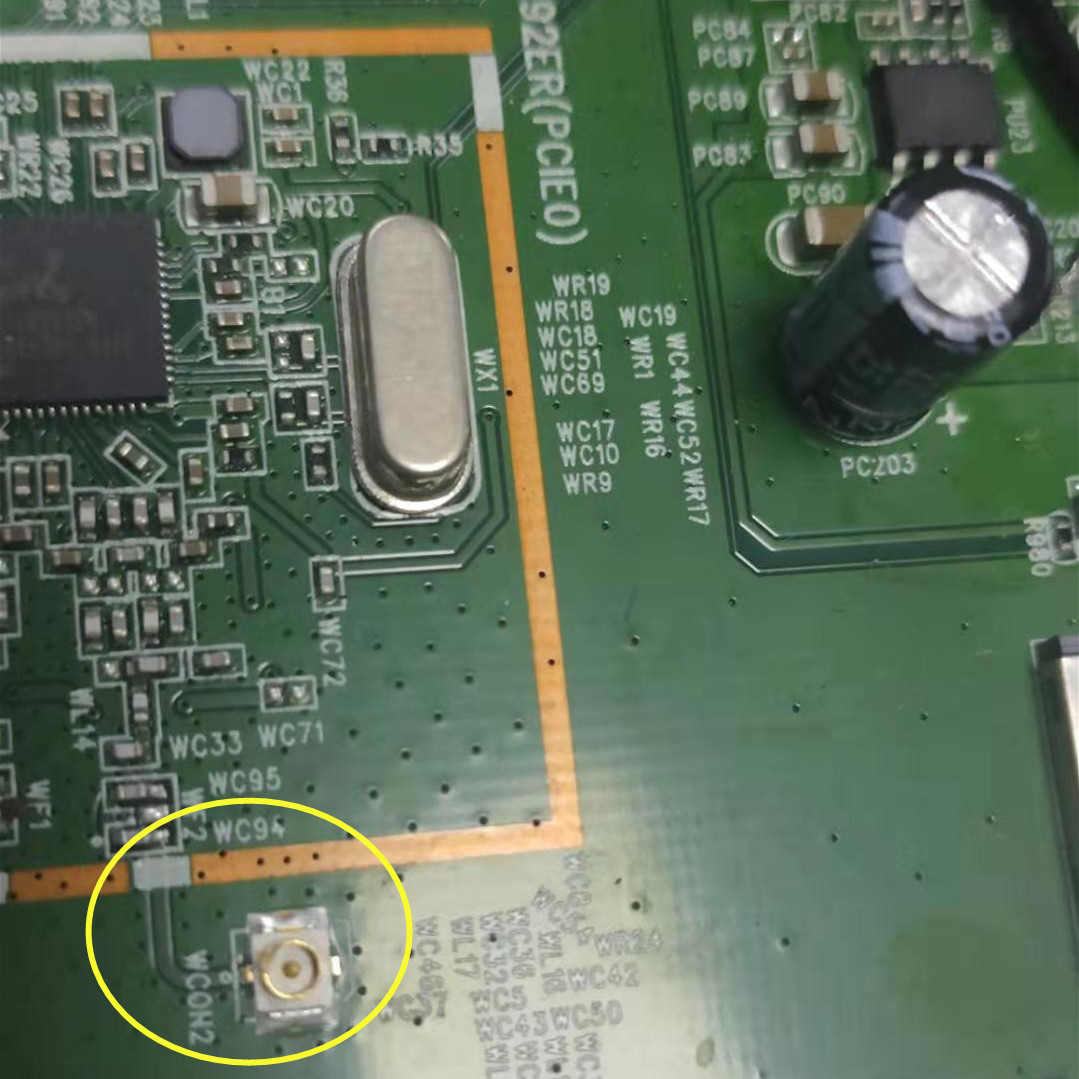

(2)(1)

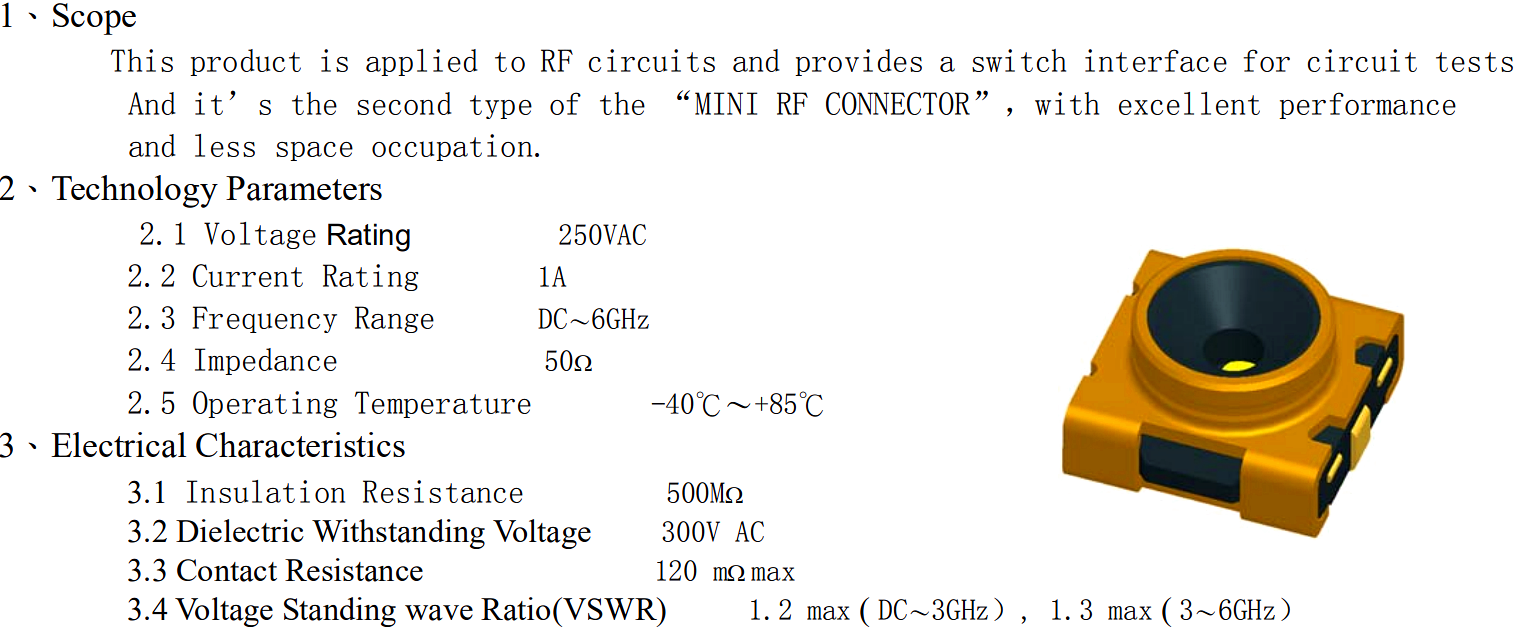

1

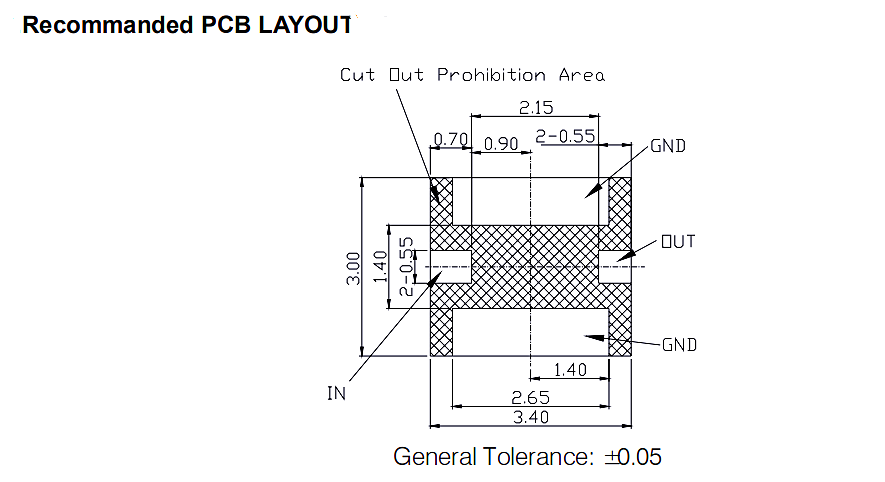

2

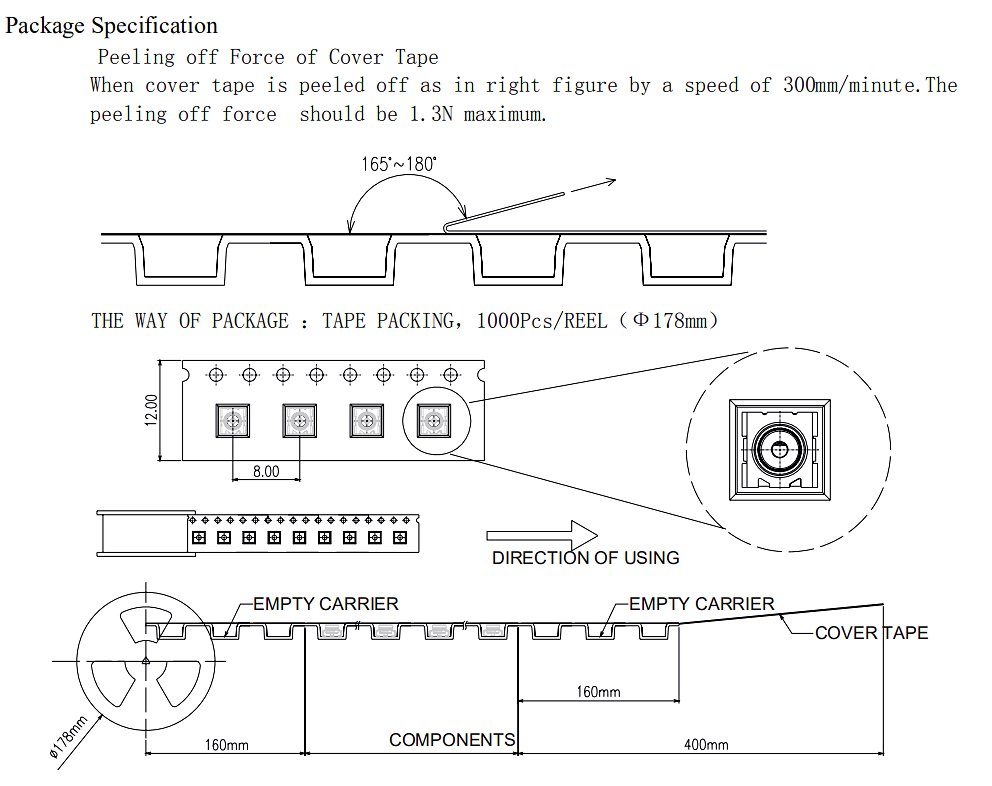

32PACK
