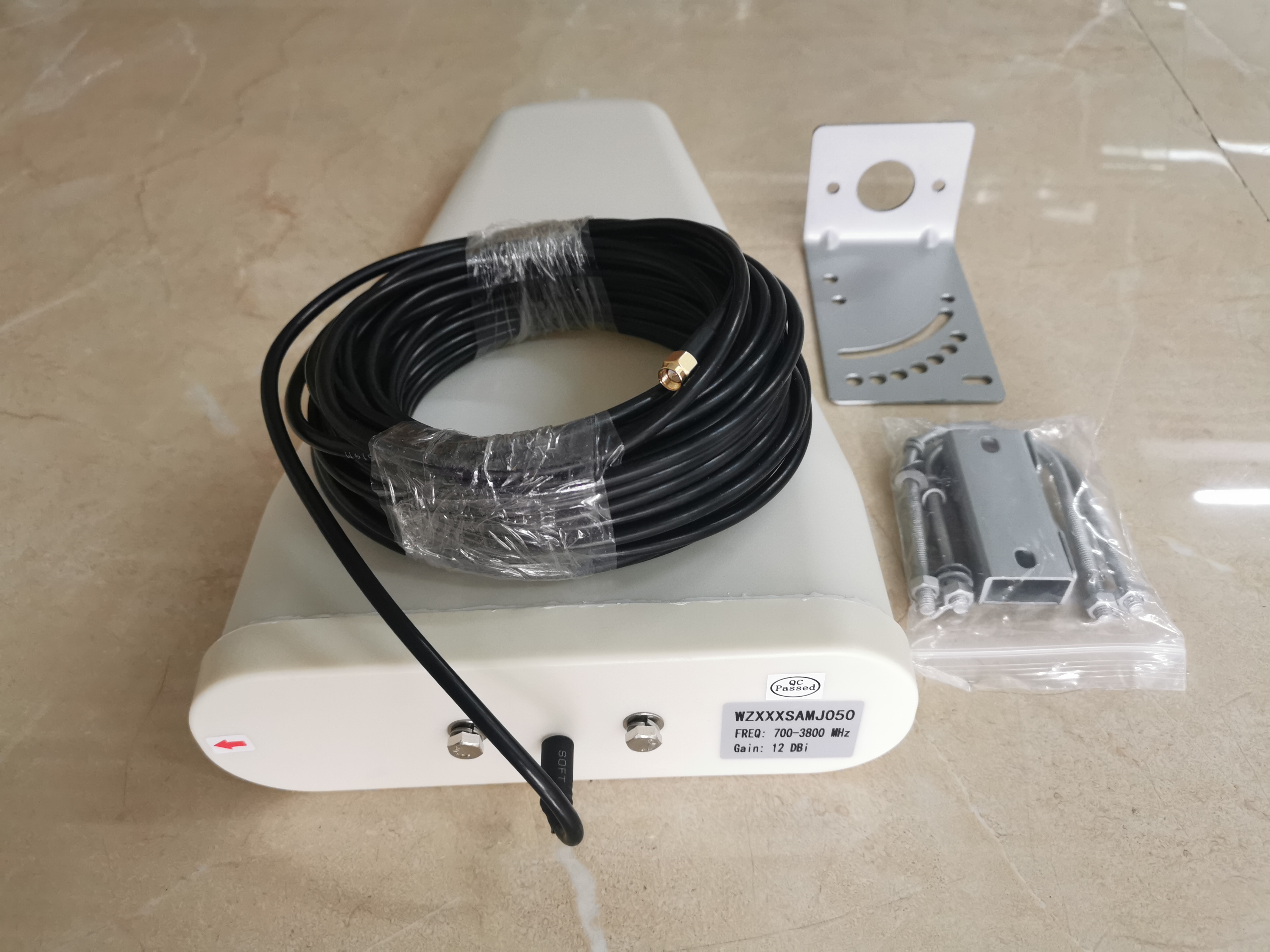

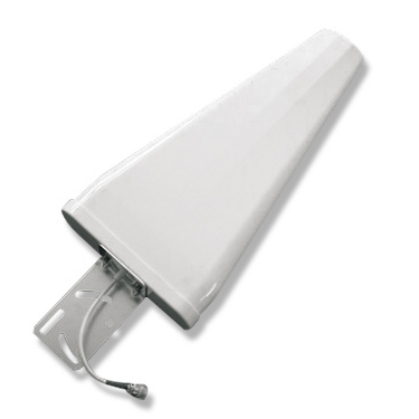

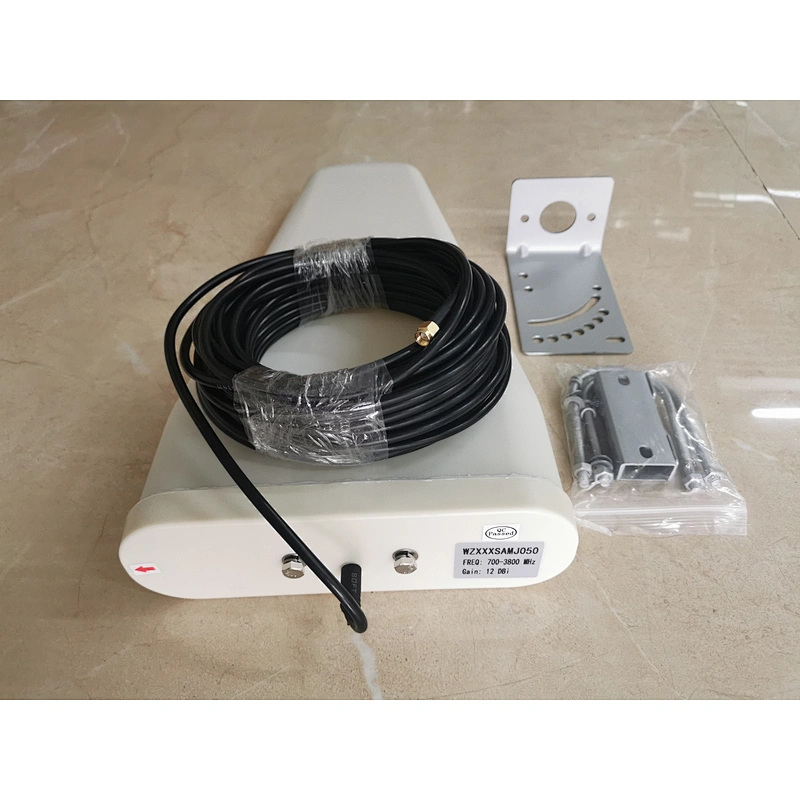

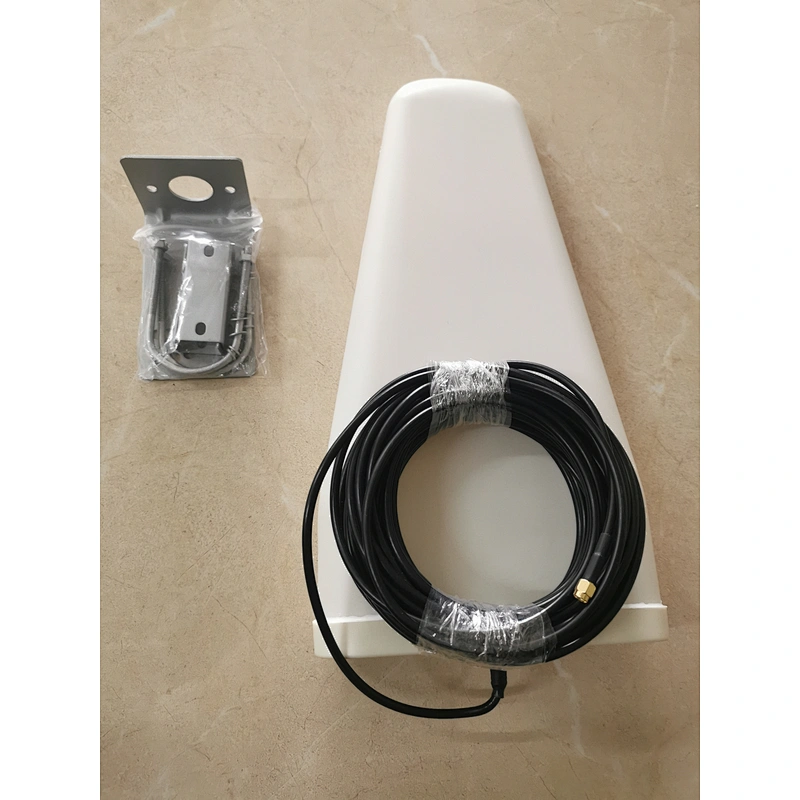

Long Range 698-2700Mhz 11dBi Log Parabolic 4G Outdoor Antenna
Long Range 698-2700Mhz 11dBi Log Parabolic 4G Outdoor Antenna
Long Range 698-2700Mhz 11dBi Log Parabolic 4G Outdoor Antenna
Long Range 698-2700Mhz 11dBi Log Parabolic 4G Outdoor Antenna
Long Range 698-2700Mhz 11dBi Log Parabolic 4G Outdoor Antenna
Long Range 698-2700Mhz 11dBi Log Parabolic 4G Outdoor Antenna
Long Range 698-2700Mhz 11dBi Log Parabolic 4G Outdoor Antenna
Long Range 698-2700Mhz 11dBi Log Parabolic 4G Outdoor Antenna
Long Range 698-2700Mhz 11dBi Log Parabolic 4G Outdoor Antenna

Long Range 698-2700Mhz 11dBi Log Parabolic 4G Outdoor Antenna

Model NO.
ZX-C25
Minimum order quantity
100 sets
Supply Ability
1000.0 sets / Quarterly
Country of Origin
Shanghai,China
Quantity:
  • Frequency Range:698-960/1710-2700MHZ
  • Gain:9/11dBi
  • Beamwidth:H:65±10 E:50 / H:55 E: 40
  • F/B ratio:≥15 dBi
  • VSWR:≤2.0(@698-800MHz)/ 1.5(@806-960/1710-2700MHz)
  • Polarization:Vertical
  • Max power:100W
  • Nominal Impedance:50Ω
  • Lightning protection:DC Ground
  • Connector type:N female or customized
  • Place of Origin:Shanghai,China
  • Brand Name:zxsignal
  • Model Number:ZX-LPDA
Product Description
Specification
item
value
Place of Origin
Shanghai,China
Brand Name
zxsignal
Model Number
ZX-LPDA
Frequency Range
698-960/1710-2700MHZ
Gain
9/11dBi
Beamwidth
H:65±10 E:50 / H:55 E: 40
F/B ratio
≥15 dBi
VSWR
≤2.0(@698-800MHz)/ 1.5(@806-960/1710-2700MHz)
Polarization
Vertical
Max power
100W
Nominal Impedance
50Ω
Lightning protection
DC Ground
Connector type
N female or customized
