Electrical Specifications
Frequency Range
MHz
69 8 - 806
806 - 960
1710- 217 0
2200 -2 700
3300 - 4000
Gain
dBi
5 ±0.5
6 ±0.5
7 ±0.5
7 .5 ±0.5
8.5 ±0.5
Polarization
Vertical

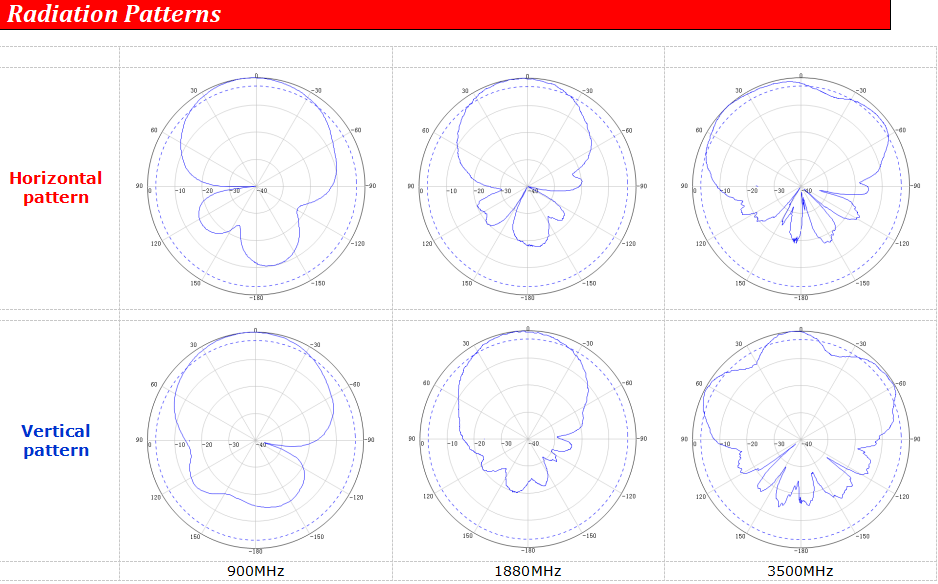

Beam width
Horizontal
deg
80
80
65
6 0
5 5
Vertical
73
70
60
60
3 0
Front-To-Back Ratio
dB
> 5
> 8
> 10
> 15
> 10
VSWR
≤ 1.8
PIM, 3rd Order, 2 x 20 W,
dBc
-15 3
Input Power, maximum
watt
5 0
Impedance
ohm
50
Mechanical Specifications
Dimensions, HxWxD
mm
180 x 170 x 60
Weight, without Mounting Kit
kg
0. 4
Radome Material and Color
ABS , White , RAL 9003
Mounting Kit
On-wall
Connector Type and Location
N-Female
Operational Temperature
oC
-55 to + 6 0
Features and Product Description
Antena direcional de banda larga de nova geração, cobertura 698MHz - 4000MHz.
Wechat escaneia o código ou copia o link do celular aberto
X

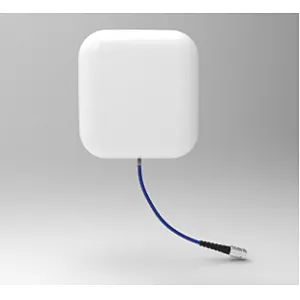

Antena de painel externo de 8,5dBi 698-4000 MHz N feminino
send
Antena de painel externo de 8,5dBi 698-4000 MHz N feminino
