8.5dBi 698-4000MHz N Type Female Panel Outdoor Panel Antenna
8.5dBi 698-4000MHz N Type Female Panel Outdoor Panel Antenna
8.5dBi 698-4000MHz N Type Female Panel Outdoor Panel Antenna

8.5dBi 698-4000MHz N Type Female Panel Outdoor Panel Antenna

Model NO.
ZX-C20
Quantity:

Electrical Specifications

Frequency Range

MHz

698-806

806-960

1710-2170

2200-2700

3300-4000

Gain

dBi

5±0.5

6±0.5

7±0.5

7.5±0.5

8.5±0.5

Polarization

Vertical

Beam width

Horizontal

deg

80

80

65

60

55

Vertical

73

70

60

60

30

Front-To-Back Ratio

dB

>5

>8

>10

>15

>10

VSWR

≤1.8

PIM, 3rd Order, 2 x 20 W,

dBc

-153

Input Power, maximum

watt

50

Impedance

ohm

50

Mechanical Specifications

Dimensions, HxWxD

mm

180x170x60

Weight, without Mounting Kit

kg

0.4

Radome Material and Color

ABS, White, RAL9003

Mounting Kit

On-wall

Connector Type and Location

N-Female

Operational Temperature

oC

-55 to +60

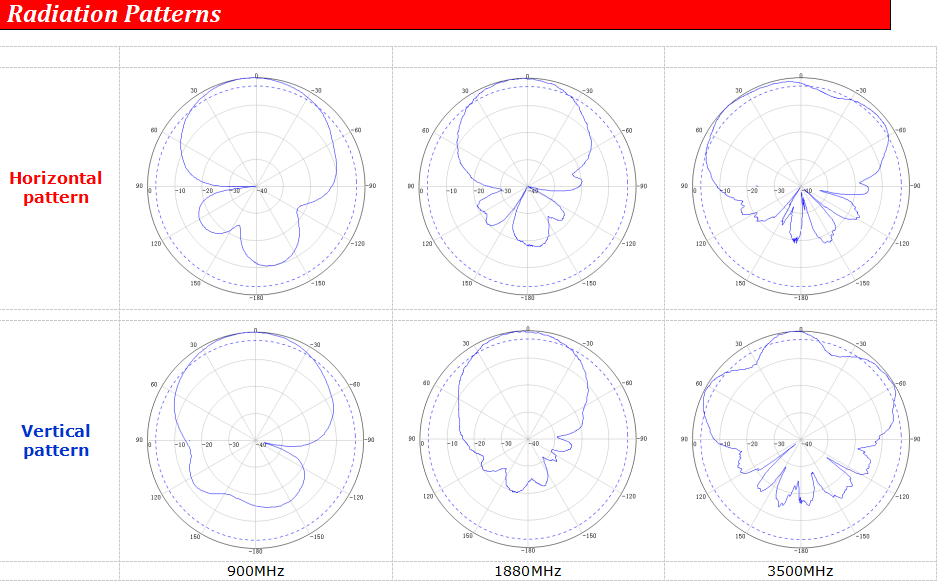

Radiation Patterns




Features and Product Description

  • New generation wideband Directional Antenna,coverage 698MHz - 4000MHz.
  • Smaller size,light-weight and easy to install.
  • Typically used in indoor distribution of LTE services.
  • Low return loss, High gain, Stable performance.
  • PIM<-153dBc @ 2x20 W.
  • N-female/ 7/16 DIN/ MINI-DIN compliant.
